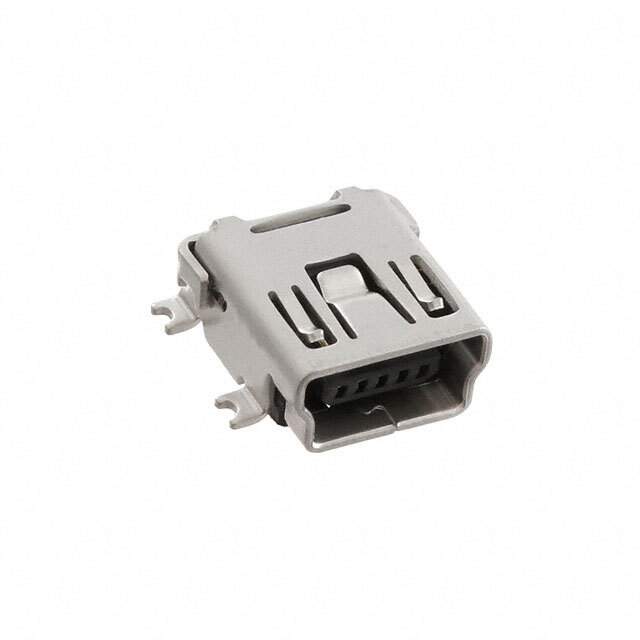

KMBX-SMT-5S-S-30TR

Name: KMBX-SMT-5S-S-30TR
Brand: Kycon, Inc.
SKU: 1349212
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	KMBX-SMT-5S-S-30TR
Manufacturer	Kycon, Inc.
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT USB2.0 MINI B SMD R/A / USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
Datasheet	KMBX-SMT-5S-S-30TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	Kycon, Inc.
Series	KMBX
Package	Tape & Reel
Connector Type	USB - mini B
Number of Contacts	5
Gender	Receptacle
Specifications	USB 2.0
Mounting Type	Surface Mount, Right Angle; Through Hole
Mounting Feature	Horizontal
Termination	Solder
Features	Board Guide
Temperature Range - Operating	-55°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	1A
Voltage - Rated	30VAC
Mating Cycles	5000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	KMBX-SMT
Standard Package	700
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349212-KMBX-SMT-5S-S-30TR
Ultra Librarian 3D Model	Ultra Librarian KMBX-SMT-5S-S-30TR CAD Model

Alternative Products

Description

This USB, DVI, HDMI connector assembly is part of the KMBX series.

Specification: USB 2.0
Number of Contacts: 5
Connector Type: USB-Mini B
Gender: Receptacle
Termination: Solder
Contact Finish: Gold
Packaging: Tape & Reel
Standard Package: 700
Mounting Type: Surface Mount, Right Angle, Through Hole
Mounting Feature: Horizontal
Operating Temperature: -55°C ~ 85°C
Ingress Protection: -
Shielding: Shielded
Number of Ports: 1
Voltage Rating: 30VAC
Mating Cycles: 5000
Insulation Color: Black
Shell/Shielding Material: Copper Alloy
