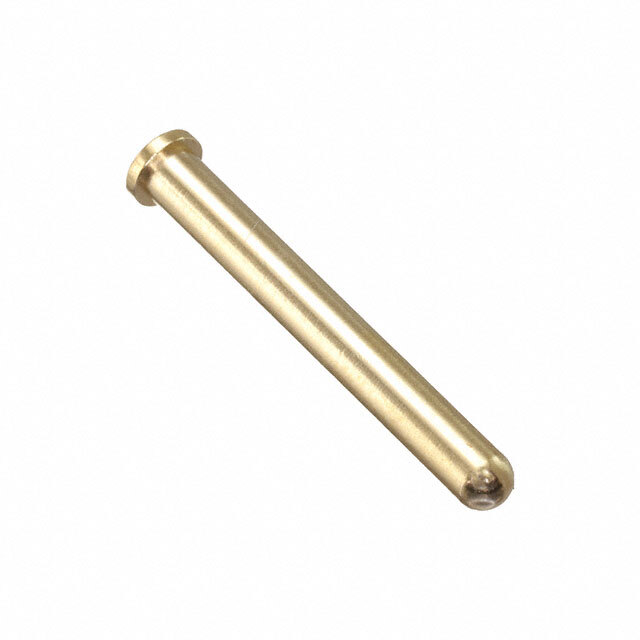

5910-0-00-15-00-00-03-0 Mill-Max Manufacturing Corp. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5910-0-00-15-00-00-03-0

Part No 5910-0-00-15-00-00-03-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals - PC Pin, Single Post Connectors
Description SOLDER MOUNT NAIL HEAD PIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsTerminalsPC Pin, Single Post Connectors
Manufacturer Mill-Max Manufacturing Corp.
Series 5910
Packaging Bulk
Part Status Active
Terminal Type PC Pin
Terminal Style Single End, Nail Head
Pin Size - Above Flange 0.080" (2.03mm) Dia
Length - Above Flange 0.660" (16.76mm)
Length - Overall 0.680" (17.27mm)
Flange Diameter 0.110" (2.79mm)
Mounting Hole Diameter 0.084" (2.13mm)
Mounting Type Through Hole
Termination Solder
Insulation Non-Insulated
Contact Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 10.0μin (0.25μm)
Base Product Number 5910-0
Ultra Librarian 3D Model Ultra Librarian 5910-0-00-15-00-00-03-0 CAD Model
