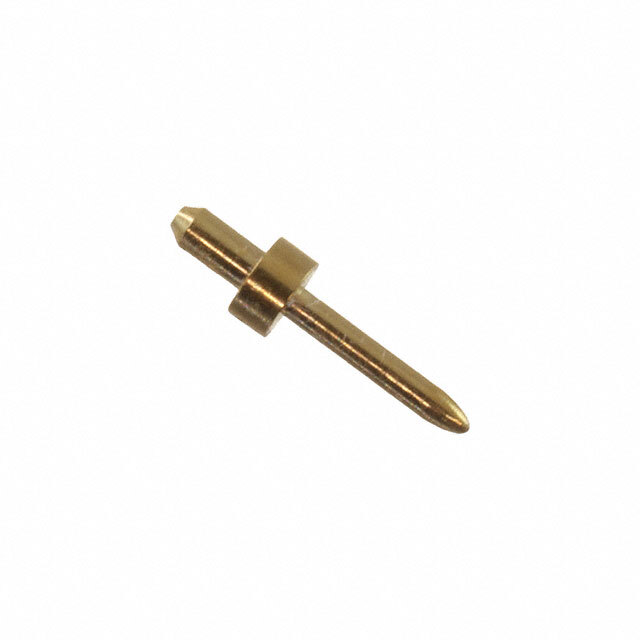

Same model may have multiple batches, images only for reference.
3140-1-00-80-00-00-08-0 Mill-Max Manufacturing Corp. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3140-1-00-80-00-00-08-0

Part No 3140-1-00-80-00-00-08-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals - PC Pin, Single Post Connectors
Description CONN PC PIN CIRC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type PC Pin
Terminal Style Wire
Pin Size - Above Flange 0.039" (0.99mm) Dia
Pin Size - Below Flange 0.040" (1.02mm) Dia
Length - Above Flange 0.051" (1.30mm)
Length - Below Flange 0.780" (19.81mm)
Length - Overall 0.851" (21.62mm)
Flange Diameter 0.070" (1.78mm)
Mounting Hole Diameter 0.043" (1.09mm)
Mounting Type Through Hole
Termination Swage
Insulation Non-Insulated
Board Thickness 0.031" (0.79mm)
Contact Material Brass Alloy
Contact Finish Tin
Contact Finish Thickness 200.0µin (5.08µm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1629811-3140-1-00-80-00-00-08-0
Ultra Librarian 3D Model Ultra Librarian 3140-1-00-80-00-00-08-0 CAD Model
