Same model may have multiple batches, images only for reference.

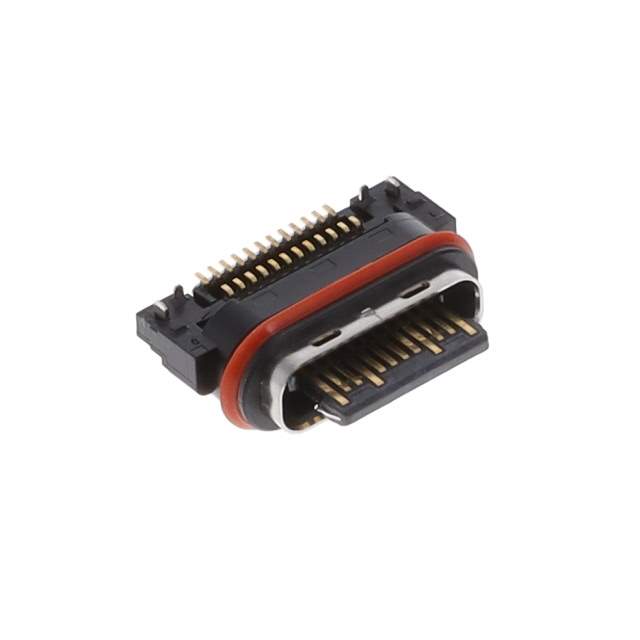

DX07W024JA2R1000 Real Image
Same model may have multiple batches, images only for reference.

DX07W024JA2R1000

Part No DX07W024JA2R1000
Manufacturer JAE Electronics
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB3.1 TYPEC 24POS SMD / USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 Position Board Edge, Surface Mount, Right Angle
Datasheet
DX07W024JA2R1000 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr JAE Electronics
Series DX07
Package Tape & Reel
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 2.0
Mounting Type Board Edge, Surface Mount, Right Angle
Mounting Feature Horizontal, Mid Mount
Termination Solder
Features Board Guide
Ingress Protection IPX8 - Waterproof
Temperature Range - Operating -30°C ~ 80°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A, 5A, 6.25A
Voltage - Rated 20VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number DX07W024
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350887-DX07W024JA2R1000
Ultra Librarian 3D Model Ultra Librarian DX07W024JA2R1000 CAD Model

Description

The DX07W024JA2R1000 from JAE Electronics is a USB-C (USB TYPE-C) connector assembly with 24 contacts.

  • Connector Type: USB-C (USB TYPE-C)
  • Number of Contacts: 24
  • Voltage Rating: 20VAC
  • USB Specification: USB 2.0
  • Shielded: Yes
  • Ingress Protection: IPX8 (Waterproof)
  • Features: Board Guide
  • Mounting Type: Surface Mount (SMT)
  • Mounting Feature: Horizontal, Mid Mount
  • Mating Cycles: 10,000
  • Flammability Rating: UL94 V-0
  • Materials: Steel and Stainless
  • Package: Tape and Reel
  • Standard Package: 1,000
