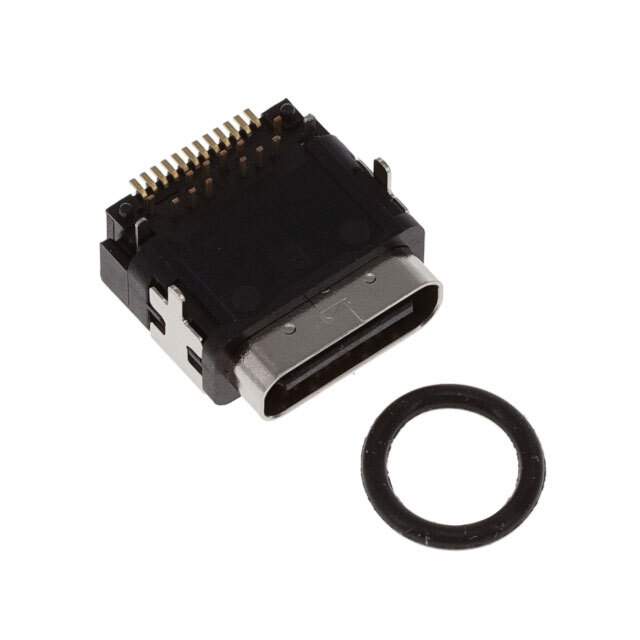

UJ31-CH-G-SMT-TR-67 Real Image
Same model may have multiple batches, images only for reference.

UJ31-CH-G-SMT-TR-67

Part No UJ31-CH-G-SMT-TR-67
Manufacturer CUI Inc.
Catalog USB, DVI, HDMI Connectors
Description USB JACK 3.1, GEN 2, C TYPE, 24 / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Datasheet
UJ31-CH-G-SMT-TR-67 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr CUI Devices
Package Tape & Reel
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1) )
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Board Guide
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -25°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A, 5A
Voltage - Rated 20VDC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number UJ31-CH
Standard Package 900
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349102-UJ31-CH-G-SMT-TR-67
Ultra Librarian 3D Model Ultra Librarian UJ31-CH-G-SMT-TR-67 CAD Model

Description

The UJ31-CH-G-SMT-TR-67 is a USB-C (USB TYPE-C) connector assembly that is used in various applications from Amphenol Commercial Products.

  • Gender: Receptacle
  • Shielded: Yes
  • Contacts: 24
  • Standard: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
  • Ingress Protection: IP67 – Dust Tight, Waterproof
  • Contact Finish: Gold
  • Mounting Feature: Horizontal
  • Mating Cycles: 10000
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Package: Surface Mount, Right-Angle; Through-Hole
  • Operating Temperature: -25°C to 85°C
  • RoHS Compliant: Yes
  • Standard Package: 900
