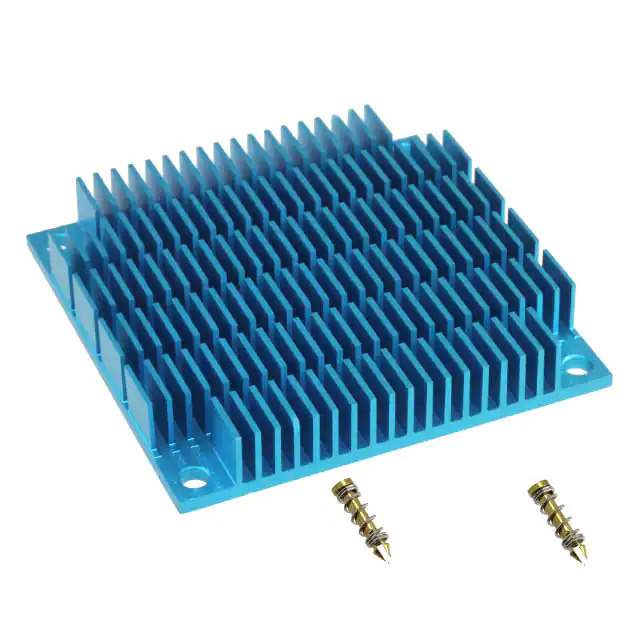

ATS-05H-205-C2-R0

Part No ATS-05H-205-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 60X60X6MM XCUT T766 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
ATS-05H-205-C2-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Tray
Product Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 2.362" (60.00mm)
Width 2.362" (60.00mm)
Fin Height 0.236" (6.00mm)
Thermal Resistance @ Forced Air Flow 13.00°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-05H
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 892708-ATS-05H-205-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-05H-205-C2-R0 CAD Model

Description

The ATS-05H-205-C2-R0 is a top mount heat sink from the pushPIN™ series by Advanced Thermal Solutions Inc.

  • Application: Designed for use in thermal management applications for various electronic components such as BGA, LGA, CPU, and ASIC
  • Material: Made of aluminum
  • Fin Height: 0.236" (6.00mm)
  • Shape: Comes in a square shape with fins
  • Length and Width: 2.362" (60.00mm)
  • Attachment Method: Push pin
  • Thermal Resistance: 13.00°C/W @ 100 LFM forced air flow
  • Finish: Blue anodized finish
  • Status: An active product
  • Packaging: Available in a tray package with a standard package size of 50 pcs
