Same model may have multiple batches, images only for reference.

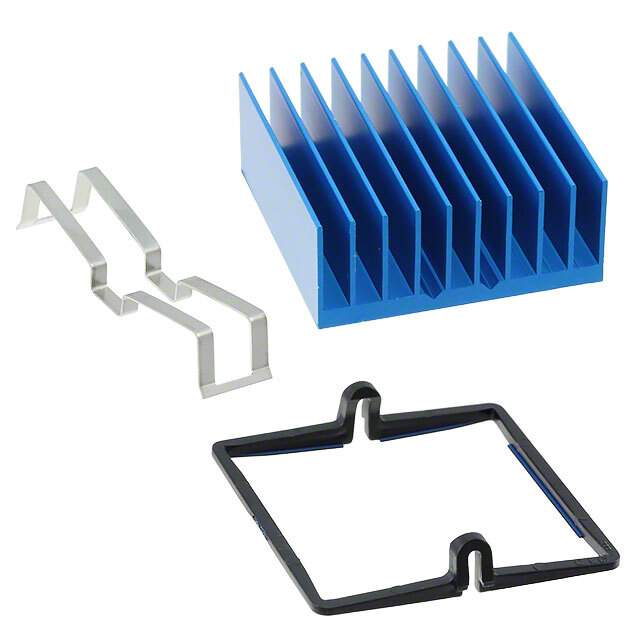

ATS-X53310G-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-X53310G-C1-R0

Part No ATS-X53310G-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description SUPERGRIP HEATSINK 31X31X12.5MM
Datasheet
ATS-X53310G-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled BGA
Attachment Method Clip, Thermal Material
Shape Square, Fins
Length 1.220" (30.99mm)
Width 1.220" (30.99mm)
Height Off Base (Height of Fin) 0.492" (12.50mm)
Thermal Resistance @ Forced Air Flow 6.2°C/W @ 200 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 1114248-ATS-X53310G-C1-R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATS-X53310G-C1-R0 CAD Model

Description

The ATS-X53310G-C1-R0 is a top mount fan from Advanced Thermal Solutions Inc.

  • Length: 1.220" (30.99mm)
  • Width: 1.220" (30.99mm)
  • Height off Base (Height of Fin): 0.492" (12.50mm)
  • Material: aluminum
  • Shape: square, fins
  • Designed to cool: BGA packages
  • Attachment Methods: clip and thermal material
  • Thermal Resistance @ forced air flow: 6.2°C/W @ 200 LFM
  • Material Finish: blue anodized
  • Category: Fans, Thermal Management
  • Popularity: medium
