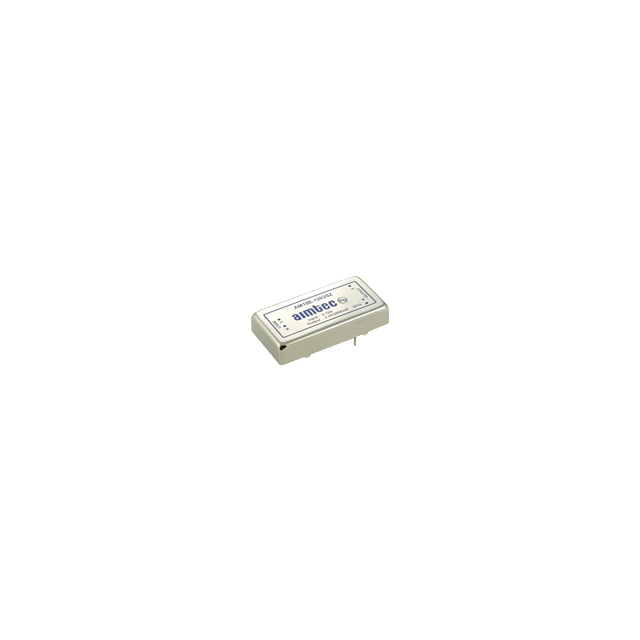

Same model may have multiple batches, images only for reference.

AM10E-2405SZ

Name: AM10E-2405SZ
Brand: AIMTEC
SKU: 1352095
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AM10E-2405SZ
Manufacturer	AIMTEC
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 18V - 36V Input
Datasheet	AM10E-2405SZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	aimtec
Series	AM10E-Z (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	82%
Mounting Type	Through Hole
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Approval Agency	CE, cULus, cURus
Base Product Number	AM10E
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1352095-AM10E-2405SZ
Ultra Librarian 3D Model	Ultra Librarian AM10E-2405SZ CAD Model

Alternative Products

Description

The AM10E-2405SZ is an isolated module from the AM10E-Z (10W) series.

Series: AM10E-Z (10W)
Package: Tube
Size/Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Application: ITE (Commercial)
Power Rating: 10W
Voltage Isolation: 1.5 kV
Number of Outputs: 1
Current Output (max): 2A
Voltage Input: 18V to 36V
Voltage Output: 5V
Efficiency: 82%
Mounting Type: Through-Hole
Operating Temperature: -40°C to 85°C
MSL Level: 1 (Unlimited)
HTSUS: 8504.40.9580
Manufacturer: aimtec
