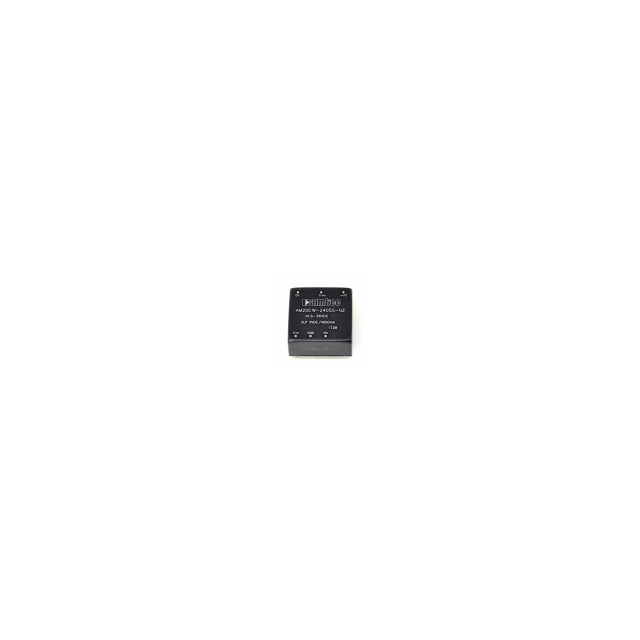

AM20CW-2424S-NZ Real Image
Same model may have multiple batches, images only for reference.

AM20CW-2424S-NZ

Part No AM20CW-2424S-NZ
Manufacturer AIMTEC
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 24V 20W  /  Isolated Module DC DC Converter 1 Output 24 ~ 24V 833mA 9V - 36V Input
Datasheet
AM20CW-2424S-NZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr aimtec
Series AM20CW-NZ (20W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Current - Output (Max) 833mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Efficiency 91%
Mounting Type Through Hole
Dimension 1.00" L x 1.00" W x 0.65" H (25.4mm x 25.4mm x 16.4mm)
Approval Agency CE
Base Product Number AM20C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2721-AM20CW-2424S-NZ
Standard Package 19
Win Source Part Number 1208244-AM20CW-2424S-NZ
Ultra Librarian 3D Model Ultra Librarian AM20CW-2424S-NZ CAD Model

Description

The AM20CW-NZ (20W) is an isolated module DC-DC converter designed for ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Control: Remote on/off control
  • Voltage Isolation: 1.5 kV
  • Maximum Output Current: 833mA
  • Input Voltage Range: 9V to 36V
  • Efficiency: 91%
  • Mounting Type: Through-hole
  • Dimension: 1.00" L x 1.00" W x 0.65" H (25.4mm x 25.4mm x 16.4mm)
  • Package: Tube
  • Standard Package: 19
  • Supplier Device Package: Undefined
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Manufacturer: Aimtec
  • Other Names: 2721-AM20CW-2424S-NZ and AM20C
  • Approval: CE
