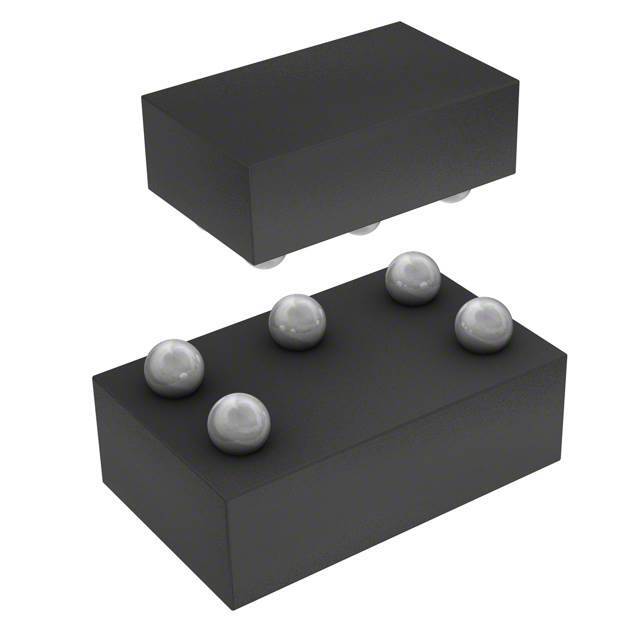

AK09916C AKM Semiconductor Inc.
Same model may have multiple batches, images only for reference.

AK09916C

Part No AK09916C
Manufacturer AKM Semiconductor Inc.
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR HALL EFFECT I2C 5WLCSP / 3-axis Electronic Compass
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer AKM Semiconductor Inc.
Packaging Reel
Technology Hall Effect
Axis X, Y, Z
Output Type I2C
Sensing Range 4.7mT ~ 5.2mT
Supply Voltage (V) 1.65V ~ 1.95V
Current - Supply (Maximum) 4mA
Current - Output (Maximum) 3mA
Resolution 16 b
Temperature Range - Operating -30°C ~ 85°C
Manufacturer Package 5-UFBGA, WLCSP
Supplier Device Package 5-WLCSP (1.18x0.78)
Mounting Style Surface Mount
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803760-AK09916C
Ultra Librarian 3D Model Ultra Librarian AK09916C CAD Model

Description

The AKM Semiconductor AK09916C is a Hall effect sensor with an I2C output type.

  • Output Type: I2C
  • Sensing Range: 4.7mT to 5.2mT
  • Resolution: 16 bits
  • Mounting Type: Surface Mount
  • Package: 5-WLCSP (1.18x0.78)
  • Temperature Range: -30°C to 85°C
  • Maximum Output Current: 3mA
  • Popularity: Medium
  • Supply/Demand Status: Balanced
