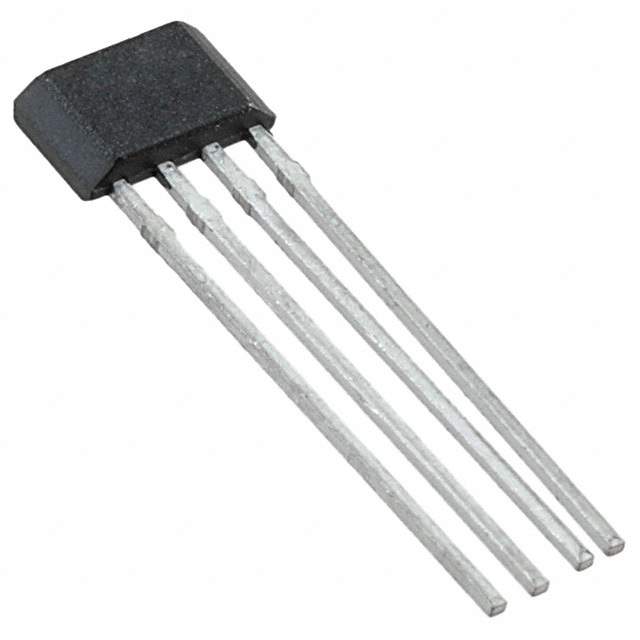

The A3423LK-T is a high-sensitivity, unipolar Hall-effect switch manufactured by Allegro MicroSystems. It's designed for use in applications requiring precise and reliable magnetic sensing.

Applications:

• Brushless DC (BLDC) motor commutation
• Position sensing
• Speed sensing
• Proximity detection
• Rotary encoding

Features:

• High sensitivity
• Unipolar switch
• Wide operating voltage range (3 V to 24 V)
• Reverse battery protection
• Overvoltage protection
• Small SOT23-W package
• Lead-Free Finish / RoHS Compliant

Benefits:

• Provides accurate and reliable BLDC motor control.
• Enables precise position detection in various applications.
• Facilitates accurate speed measurement.
• Offers reliable proximity detection for safety and control.
• Allows for accurate rotary encoding in industrial and automotive systems.
• Protects the device from damage due to reverse battery connection.
• Protects the device from overvoltage conditions.
• Allows for efficient use of board space.
• Compliant with environmental regulations, offering a lead-free and RoHS-compliant component.

Additional Details:

The A3423LK-T is a unipolar Hall-effect switch meaning it requires only a single magnetic pole (typically south) of sufficient strength to operate. The integrated protection features enhance reliability in harsh automotive and industrial environments. Its high sensitivity allows it to detect small magnetic fields, making it suitable for a wide range of applications. The small SOT23-W package allows it to be used in compact designs. The device output switches low when a magnetic field of sufficient strength is present and switches high when the magnetic field is removed. The A3423LK-T is an excellent choice for applications where precise and reliable magnetic sensing is required.
