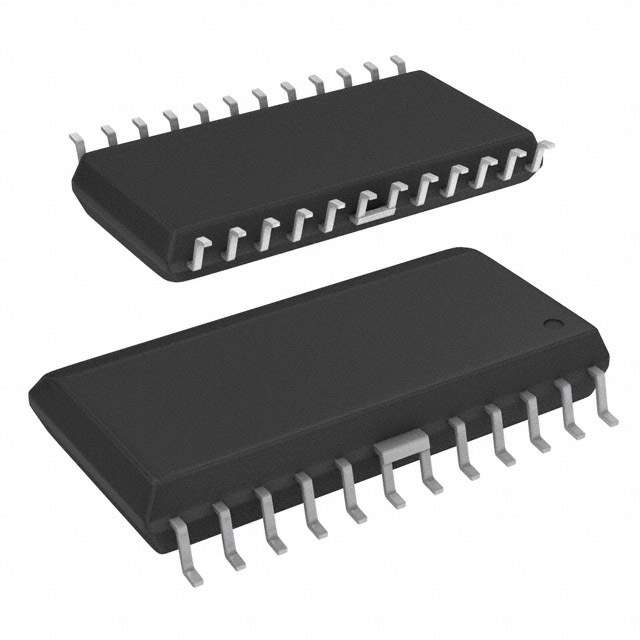

A4970GLBTR-T Real Image
Same model may have multiple batches, images only for reference.

A4970GLBTR-T

Part No A4970GLBTR-T
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description Dual Full-Bridge PWM Motor Driver
Datasheet
A4970GLBTR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Allegro MicroSystems, LLC
Packaging Reel - TR
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface On/Off
Technology DMOS
Applications General
Output Current 750mA
Operating Supply Voltage 4.75 V ~ 5.25 V
Voltage - Load 7.45 V ~ 45 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD
Package 24-SOIC (0.295", 7.50mm Width)
Manufacturer Package 24-SOIC
Win Source Part Number 1134693-A4970GLBTR-T
Manufacturer Homepage www.allegromicro.com
Family Name A4970
Introduction Date March 09, 2011
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2022
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Audio, Portable Devices, Consumer Electronics, Communications & Networking, Computers & Computer Peripherals
Ultra Librarian 3D Model Ultra Librarian A4970GLBTR-T CAD Model

Description

The A4970GLBTR-T is a fully integrated driver that comes with control and power stage. It is manufactured by Allegro MicroSystems, LLC and is widely used in audio, portable devices, consumer electronics, communications, and networking, as well as computers and computer peripherals.

  • Popularity: medium
  • Supply and Demand Status: limited
  • Manufacturer Homepage: www.allegromicro.com
