Same model may have multiple batches, images only for reference.

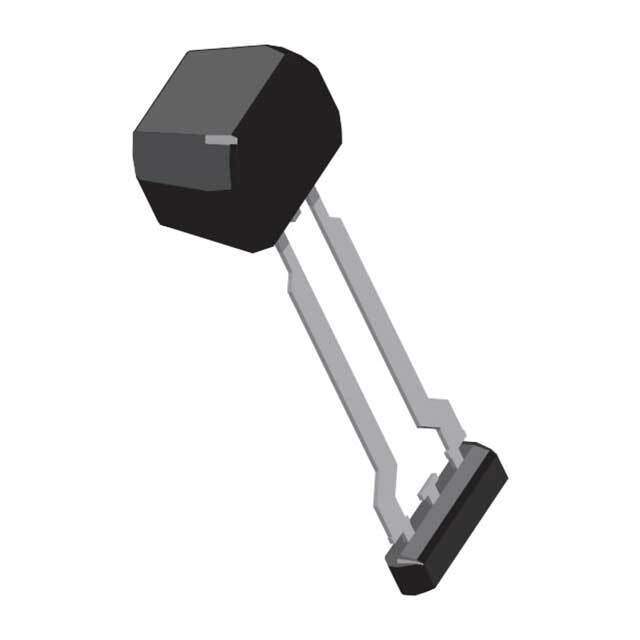

ATS19520LSNBTN-RSWHPYU Real Image
Same model may have multiple batches, images only for reference.

ATS19520LSNBTN-RSWHPYU

Part No ATS19520LSNBTN-RSWHPYU
Manufacturer Allegro MicroSystems, LLC
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description VIBRATION-TOLERANT HALL EFFECT T
Datasheet
ATS19520LSNBTN-RSWHPYU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Allegro MicroSystems
Package Tape & Reel
Type Hall Effect
Output Type Digital
Actuator Material Ferrous Metals, Gear Tooth
Termination Style PC Pin
Frequency 12 kHz
Voltage - Supply 4V ~ 24V
Temperature Range - Operating -40°C ~ 150°C
Package / Case 2-SIP Module
Base Product Number ATS195
Standard Package 800
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1346992-ATS19520LSNBTN-RSWHPYU
Ultra Librarian 3D Model Ultra Librarian ATS19520LSNBTN-RSWHPYU CAD Model

Description

The ATS19520LSNBTN-RSWHPYU is a Hall Effect position, proximity, and speed sensor from Allegro MicroSystems.

  • Termination Style: PC pin
  • Supply Voltage: 4V to 24V
  • Sensing Frequency: 12kHz
  • Package Size: 2-SIP module
  • Application: Designed for use in industrial applications
  • Sensing Range: Must operate and must release
  • REACH: Unaffected by REACH regulations
  • ECCN: EAR99
