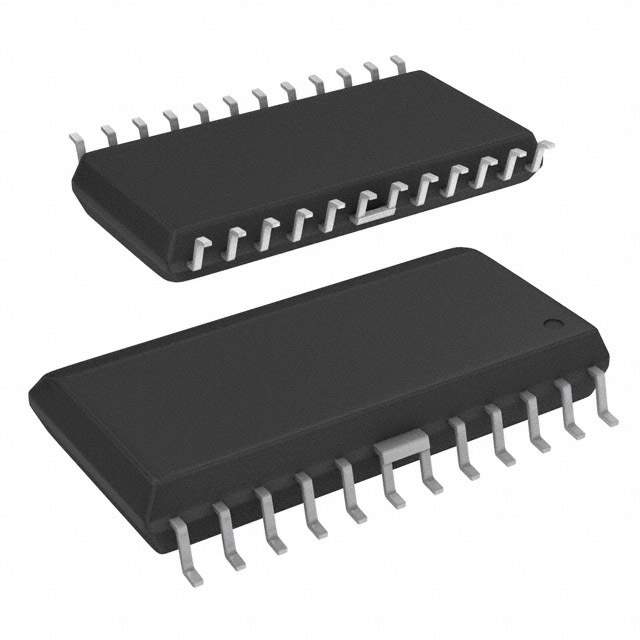

UDN2916LB Real Image
Same model may have multiple batches, images only for reference.

UDN2916LB

Part No UDN2916LB
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 24SOIC
Datasheet
UDN2916LB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Tube/Rail
Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bipolar
Applications General Purpose
Output Current 750mA
Supply Voltage - Operating 4.75 V to 5.25 V
Voltage - Load 10 V to 45 V
Temperature Range - Operating -20°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 24-SOIC
Win Source Part Number 139965-UDN2916LB
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Industrial, Communications & Networking
Quantity per package 31
Ultra Librarian 3D Model Ultra Librarian UDN2916LB CAD Model

Description

The UDN2916LB is a fully integrated stepper motor driver IC from Allegro MicroSystems. The chip is designed to drive bipolar stepper motors and brushed DC motors.

  • Maximum Output Current: 750 mA
  • Voltage Range: 10 V to 45 V
  • Features: Built-in translator that converts step and direction inputs into motor phase outputs.
  • Package: 24-SOIC package
  • Suitable for: Use in computers, computer peripherals, industrial, and communications and networking applications.
