Same model may have multiple batches, images only for reference.

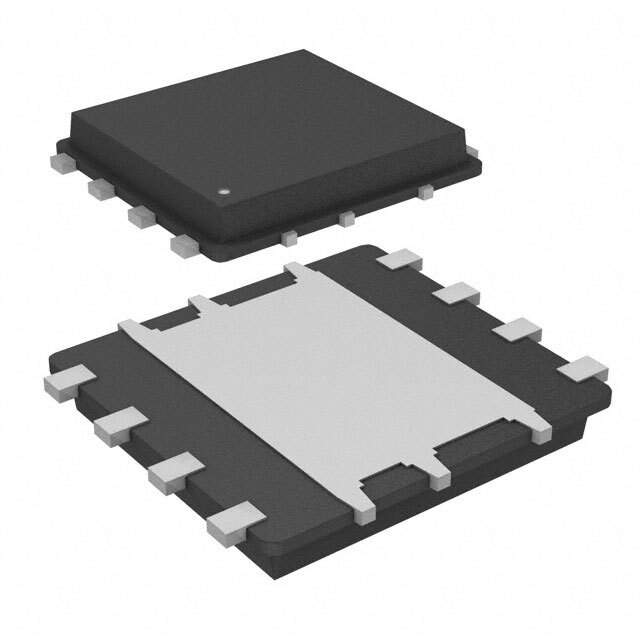

AON6812 Real Image
Same model may have multiple batches, images only for reference.

AON6812

Part No AON6812
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 27A 8-DFN / Trans MOSFET N-CH 30V 27A
Datasheet
AON6812 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
FET Type 2 N-Channel (Dual) Common Drain
FET Feature Logic Level Gate
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 27A
Rds On (Maximum) @ Id, Vgs 4 mOhm @ 20A, 10V
Vgs(th) (Maximum) @ Id 2.2V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 34nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1720pF @ 15V
Power - Max 4.1W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 8-SMD, Flat Lead Exposed Pad
Manufacturer Package 8-DFN-EP (5.2x5.55)
Win Source Part Number 768560-AON6812
Popularity Medium
Supply and Demand Status Limited
Family Name AON6812
Introduction Date June 03, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian AON6812 CAD Model

Description

The AON6812 is a dual N-channel MOSFET manufactured by Alpha & Omega Semiconductor Inc.. This product has the following specifications:

  • Supply and Demand: Limited
  • Win Source Part Number: 768560-AON6812
  • Maximum Continuous Drain Current: 27A
  • Maximum Power: 4.1W
  • Package: 8-SMD, flat lead exposed pad
