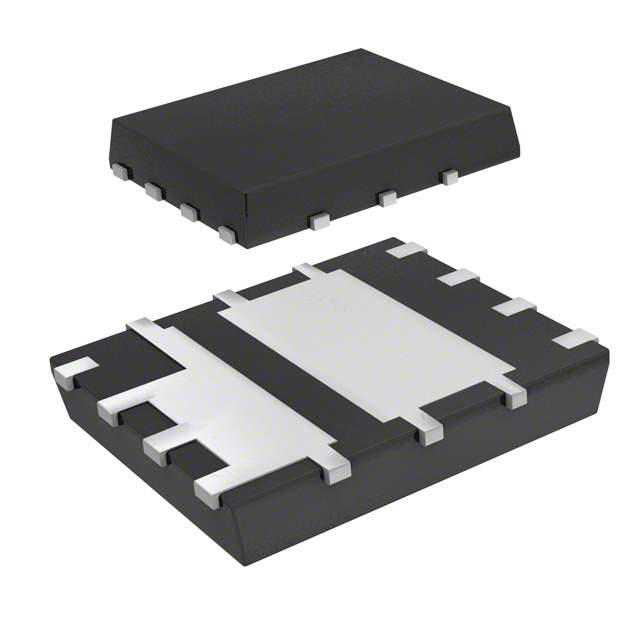

AON6936 Real Image
Same model may have multiple batches, images only for reference.

AON6936

Part No AON6936
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 22A/40A 8DFN
Datasheet
AON6936 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 22A, 40A
Maximum Rds On at Id,Vgs 4.9 mOhm @ 20A, 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 24nC @ 10V
Max Input Capacitance 984pF @ 15V
Maximum Power Dissipation 3.6W, 4.3W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (5x6)
Win Source Part Number 1017108-AON6936
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON6936 CAD Model

Description

The Alpha & Omega Semiconductor Inc. FET is a 2 N-Channel (Half Bridge) power MOSFET designed for use in discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current @ 25°C: 22A and 40A
  • Gate-Source Threshold Voltage: 2.5V @ 250μA
  • Maximum Rds On @ Id,Vgs: 4.9 mOhm @ 20A, 10V
  • Package: 8-DFN (5x6)
  • Mounting Technology: SMD (SMT)
  • Popularity: Medium
  • Supply and Demand Status: Balance
