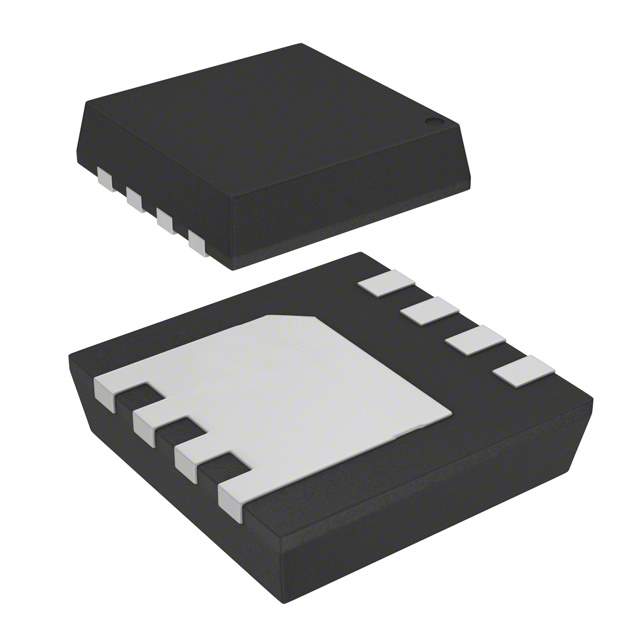

AON7418A Real Image
Same model may have multiple batches, images only for reference.

AON7418A

Part No AON7418A
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog FETs - Single
Description MOSFET N-CHANNEL 30V 50A 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) at 25°C 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Maximum) at Id, Vgs 1.7mOhm at 20A, 10V
Vgs(th) (Maximum) at Id 2.2V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 65nC at 10V
Maximum Vgs ±20V
Input Capacitance (Ciss) (Maximum) at Vds 2994pF at 15V
Power Dissipation (Maximum) 83W (Tc)
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Supplier Device Package 8-DFN-EP (3.3x3.3)
Manufacturer Package 8-PowerWDFN
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805205-AON7418A
Ultra Librarian 3D Model Ultra Librarian AON7418A CAD Model

Description

The Alpha & Omega Semiconductor Inc. MOSFET (Metal Oxide) N-Channel FET Type is a high-performance electronic component.

  • Drain to Source Voltage (Vdss): 30V
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Operating Temperature Range: -55°C ~ 150°C
  • Package: 8-DFN-EP (3.3x3.3)
  • Power Dissipation (Maximum): 83W (Tc)
  • Status: Obsolete (End Of Life)
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
  • Rds On (Maximum) @ Id, Vgs: 1.7mOhm @ 20A, 10V
  • Gate Charge (Qg) (Maximum) @ Vgs: 65nC @ 10V
  • Input Capacitance (Ciss) (Maximum) @ Vds: 2994pF @ 15V
  • Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
  • Vgs(th) (Maximum) @ Id: 2.2V @ 250μA
  • Maximum Vgs: ±20V
