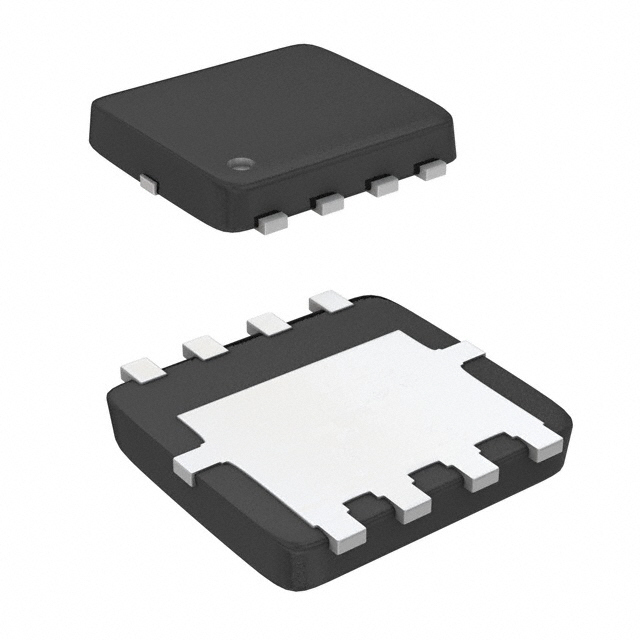

Same model may have multiple batches, images only for reference.
AONR36368 Alpha & Omega Semiconductor Inc.
Same model may have multiple batches, images only for reference.

AONR36368

Part No AONR36368
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 23A/32A 8DFN / N-Channel 30 V 23A (Ta), 32A (Tc) 4.1W (Ta), 24W (Tc) Surface Mount 8-DFN-EP (3x3)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Alpha & Omega Semiconductor Inc.
Series -
Package Tape & Reel
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 23A (Ta), 32A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 25 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1305 pF @ 15 V
FET Feature -
Power Dissipation (Max) 4.1W (Ta), 24W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-DFN-EP (3x3)
Package / Case 8-PowerVDFN
Base Product Number AONR363
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1356937-AONR36368
Ultra Librarian 3D Model Ultra Librarian AONR36368 CAD Model

Description

The AONR36368 is an N-Channel MOSFET (Metal Oxide Semiconductor Field-Effect Transistor) from Alpha & Omega Semiconductor Inc.

  • FET Type: N-Channel
  • FET Feature: Standard
  • Vdss Drain to Source Voltage: 30V
  • Current - Continuous Drain (Id) @ 25°C: 23A
  • Current - Continuous Drain (Id) @ Tc: 32A
  • Vgs Gate-Source Voltage (Max): ±20V
  • Vgs(th) (Max) @ Id: 2.1V @ 250μA
  • Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 10V
  • Qg (Total Gate Charge) @ Vgs: 25nC @ 10V
  • Mounting Type: Surface Mount
  • Package / Case: 8-PowerVDFN
