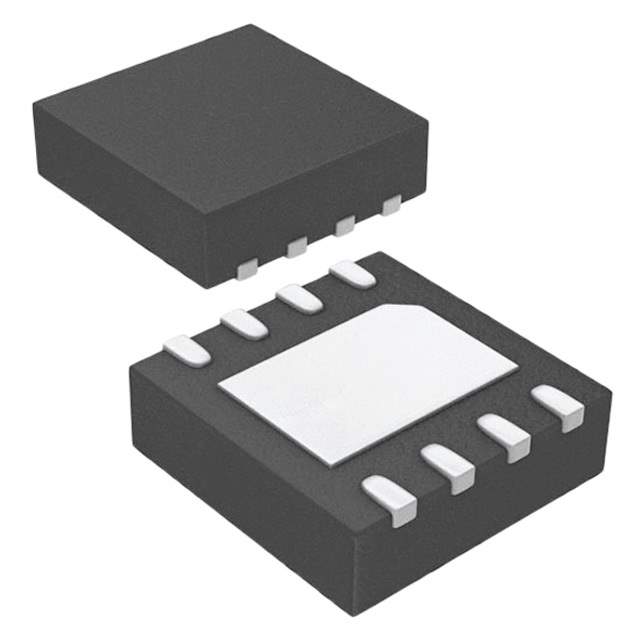

AOZ8014DIL Real Image
Same model may have multiple batches, images only for reference.

AOZ8014DIL

Part No AOZ8014DIL
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/17PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 4
Center / Cutoff Frequency 125MHz (Cutoff)
Attenuation Value -25dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 100
Current 20mA
Values R = 100 Ohms, C = 17pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 5V
Mounting SMD (SMT)
Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height 0.031" (0.79mm)
Win Source Part Number 114581-AOZ8014DIL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOZ8014DIL CAD Model

Description

AOZ8014DIL

The AOZ8014DIL stands out with its seamless blend of advanced technology and practical design, tailored for efficient power management in demanding environments.

  • Applications/Projects:
    • Power adapters
    • LED lighting systems
    • Industrial automation
    • Smart home devices
    • Communication devices
  • Features and Benefits:
    • Excellent power conversion efficiency
    • Compact and durable packaging
    • Low EMI emissions for noise reduction
    • Robust construction for extended lifespan
  • Additional Details:
    • Operating voltage range: 1.2V to 5V
    • Highly integrated solution with minimal external components
    • Provision for thermal protection
