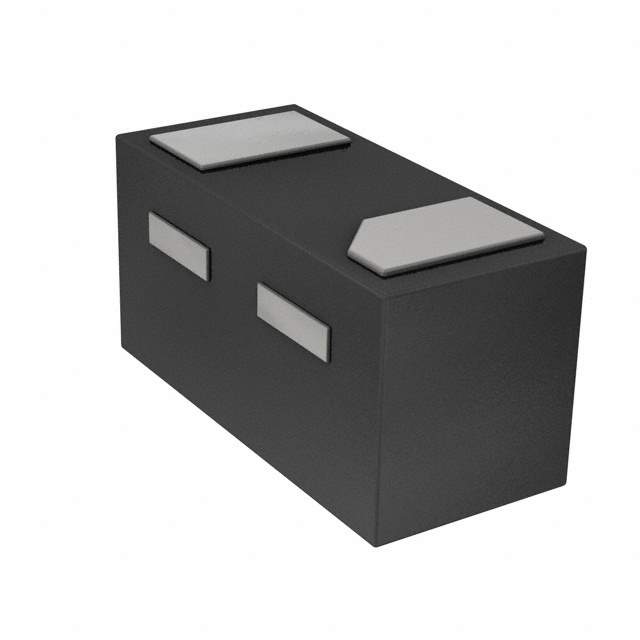

Same model may have multiple batches, images only for reference.

AOZ8252DI-05

Name: AOZ8252DI-05
Brand: Alpha & Omega Semiconductor Inc.
SKU: 1381407
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AOZ8252DI-05
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 15VC 2DFN / 15V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (0.62x0.32)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr	Alpha & Omega Semiconductor Inc.
Series	-
Package	Tape & Box (TB)
Product Status	Obsolete
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)
Power - Peak Pulse	30W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.3pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-DFN (0.62x0.32)
Base Product Number	AOZ8252
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Standard Package	3,000 pcs
Win Source Part Number	1381407-AOZ8252DI-05
Ultra Librarian 3D Model	Ultra Librarian AOZ8252DI-05 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. AOZ8252DI-05 is a TVS diode for circuit protection. It is designed to protect against transient voltage surges in various applications.

Reverse Standoff Voltage: 5V
Breakdown Voltage: 6V
Clamping Voltage: 15V
Power Peak Pulse: 30W
Mounting Type: Surface Mount
Package / Case: 0201 (0603 Metric)
Temperature Range: -40°C to 125°C
