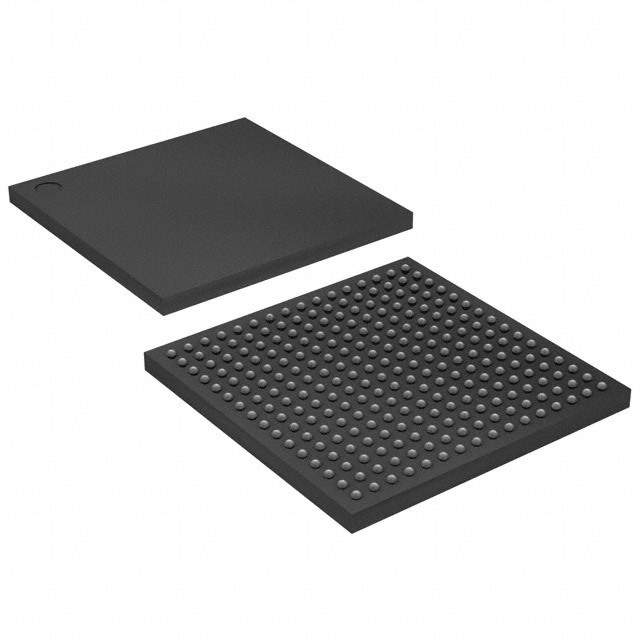

The EPM7256BFC256-10N is a high-density Complex Programmable Logic Device (CPLD) from Altera's MAX 7000B family. It offers 256 macrocells and is housed in a 256-pin FineLine BGA package. This CPLD is designed for a wide range of applications requiring programmable logic, offering a balance of performance, density, and cost-effectiveness.

Applications

• High-speed control logic
• Data path control
• Address decoding
• Interface bridging
• General-purpose logic replacement

Features

• 256 macrocells
• 256-pin FineLine BGA package
• High-speed performance with a 10 ns pin-to-pin delay
• In-system programmability (ISP) via JTAG interface
• Advanced pin-locking feature

Benefits

• Enables complex logic functions in a single device
• Reduces board space and component count
• Provides fast and predictable timing
• Allows for easy design modifications and upgrades
• Facilitates easy board layout and signal integrity

The EPM7256BFC256-10N is programmed using Altera's Quartus II software. The device offers advanced features such as pin locking to ensure stable and predictable timing. Its high density and performance make it suitable for demanding applications requiring complex logic functions. The in-system programmability feature allows for easy updates and modifications in the field.
