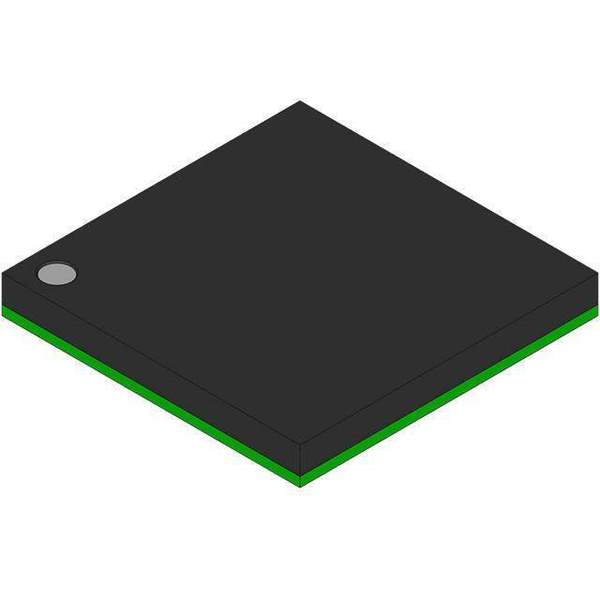

EPM7256BUC169-5 Real Image
Same model may have multiple batches, images only for reference.

EPM7256BUC169-5

Part No EPM7256BUC169-5
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 256MC 5NS 169UBGA / CPLD MAX® 7000B Family 5K Gates 256 Macro Cells 188.7MHz 2.5V 169-Pin UFBGA Tray
Datasheet
EPM7256BUC169-5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000B
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.0ns
Voltage Supply - Internal 2.375 V ~ 2.625 V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 141
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 160-LFBGA
Manufacturer Package 169-UBGA (11x11)
Win Source Part Number 774198-EPM7256BUC169-5
Popularity Medium
Supply and Demand Status Limited
Quantity per package 176
Family Name EPM7256B
Introduction Date October 08, 1998
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7256BUC169-5 CAD Model

Description

The Altera MAX 7000B series is a family of programmable logic devices designed to provide high-performance solutions for a wide range of applications.

  • Package: 160-LFBGA
  • I/O Pins: 141
  • Voltage Supply: 2.375V to 2.625V
  • Maximum Operating Temperature: 70°C
  • Logic Elements/Blocks: 16
  • Macrocells: 256
  • In-System Programmable: Yes
  • Delay Time: 5.0ns
  • Obsolete: Yes
