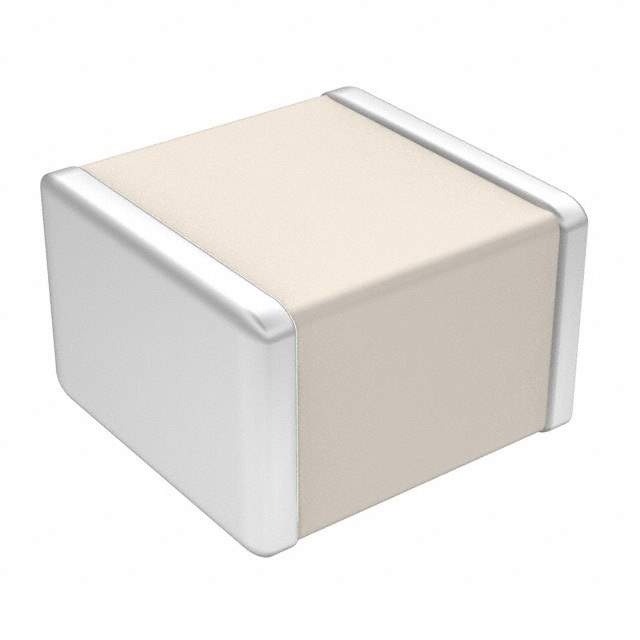

The American Technical Ceramics 100B220JP500XT is a ceramic capacitor designed for high-frequency applications requiring stability and reliability. It features a capacitance of 22 pF (picofarads) and a voltage rating of 500 VDC. The high Q factor and low ESR (Equivalent Series Resistance) make it suitable for RF, microwave, and high-speed digital circuits.

Applications:

• RF and Microwave Circuits
• High-Speed Digital Circuits
• Filter Networks
• Bypass and Decoupling Capacitors
• Timing Circuits
• Matching Networks

Features:

• Ceramic Construction: Provides excellent stability and low loss at high frequencies.
• 22 pF Capacitance: Offers a precise capacitance value for circuit tuning and performance.
• 500 VDC Voltage Rating: Suitable for applications with high voltage requirements.
• High Q Factor: Ensures minimal energy loss, improving circuit efficiency.
• Low ESR: Minimizes power dissipation and heat generation.
• Surface Mount Technology (SMT): Enables automated assembly and reduces board space.

Benefits:

• Improved Circuit Performance: Enhances the stability and efficiency of high-frequency circuits.
• Reduced Signal Loss: Minimizes energy loss for optimal signal transmission.
• Reliable Operation: Provides stable and consistent performance under various operating conditions.
• High Power Handling: Withstands high voltages and currents without degradation.
• Compact Size: Allows for dense circuit designs and miniaturization.

Additional Details:

This capacitor's construction uses a rugged ceramic material that exhibits predictable behavior over a wide range of temperatures. The high Q factor and low ESR are crucial for maintaining signal integrity in high-frequency applications. The 100B series denotes a specific set of performance characteristics. The JP likely refers to the tolerance, in this case, ±5%. The XT at the end designates the termination style, which is typically a lead-free solder finish. Proper handling and mounting techniques should be followed to ensure optimal performance and reliability.
