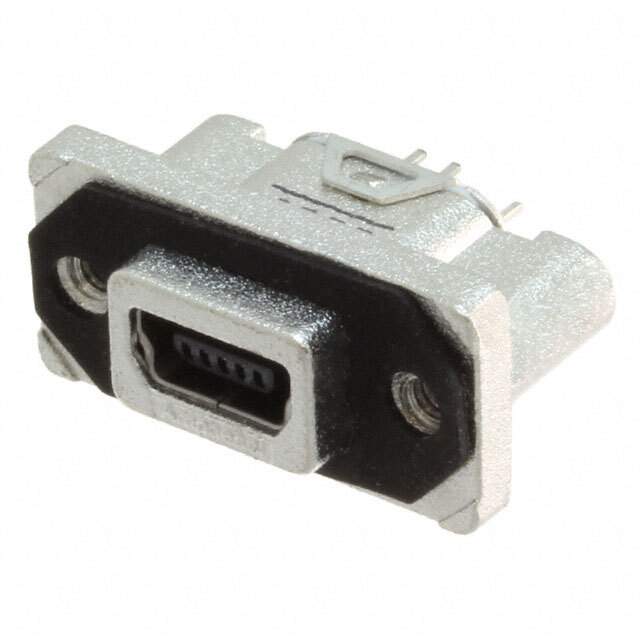

Same model may have multiple batches, images only for reference.

MUSBR-B551-30

Name: MUSBR-B551-30
Brand: Amphenol Commercial Products
SKU: 508100
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MUSBR-B551-30
Manufacturer	Amphenol Commercial Products
Catalog	USB, DVI, HDMI Connectors
Description	RUGGED USB MINI B VERTICAL
Datasheet	MUSBR-B551-30 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol Commercial Products
Packaging	Tray
Status	Active
Connector Type	USB - mini B
Number of Contacts	5
Gender	Receptacle
Specifications	USB 2.0
Mounting	Panel Mount, Through Hole
Mounting Feature	Flange, Vertical
Termination	Solder
Ingress Protection	IP67 - Dust Tight, Waterproof
Temperature Range - Operating	-40°C to 105°C
Number of Ports	1
Current Rating	1A
Mating Cycles	5000
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Win Source Part Number	1091449-MUSBR-B551-30
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian MUSBR-B551-30 CAD Model

Description

The Amphenol Commercial Products 1091449-MUSBR-B551-30 is a USB mini-B connector designed for solder termination.

Connector Gender: Receptacle
Contacts: Five
Voltage Rating: -
Current Rating: 1A
Contact Finish: Gold
IP Rating: IP67 for dust-tight and waterproof protection
Mounting: Panel-mounted with a flange feature and vertical mounting
Applications: Industrial, consumer electronics, and multimedia
