Same model may have multiple batches, images only for reference.

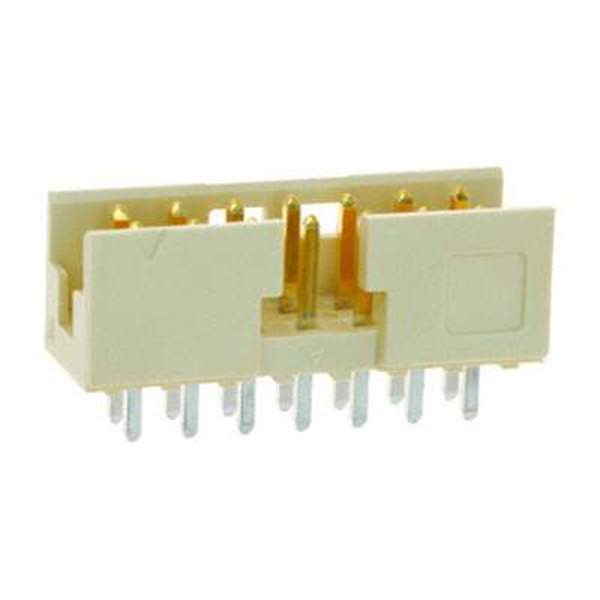

10075025-G01-14ULF

Name: 10075025-G01-14ULF
Brand: Amphenol FCI
SKU: 808044
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	10075025-G01-14ULF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Amphenol ICC (FCI)
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.079" (2.00mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A (AC/DC)
Voltage Rating	200V (AC/DC)
Contact Finish Thickness - Post	78.7μin (2.00μm)
Manufacturer Pack Quantity	35
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	808045-10075025-G01-14ULF
Ultra Librarian 3D Model	Ultra Librarian 10075025-G01-14ULF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 808045-10075025-G01-14ULF is a 14-position male pin header connector from Amphenol ICC (FCI).

Applications: Board-to-Board or Cable
Features: Keying Slot, Detent Lock
Contact Material: Copper Alloy
Voltage Rating: 200V (AC/DC)
Contact Finish: Gold, GXT
Insulation Material: Thermoplastic
Shrouding: 4 Walls
Row Spacing: 0.079" (2.00mm)
Contact Length (Mating): 0.157" (4.00mm)
Contact Length (Post): 0.079" (2.00mm)
Current Rating: 2A (AC/DC)
Packaging: Tube
Quantity: 35
