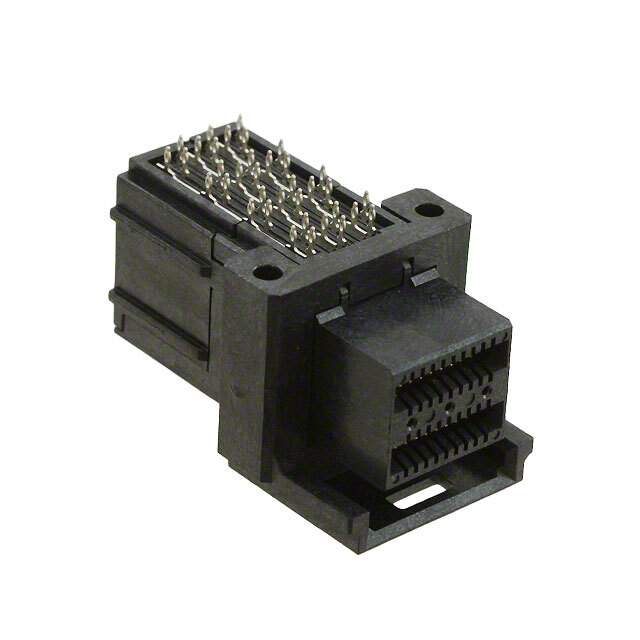

10112632-101LF Real Image
Same model may have multiple batches, images only for reference.

10112632-101LF

Part No 10112632-101LF
Manufacturer Amphenol FCI
Catalog Pluggable Connectors
Description CONN MINI HD SAS RCP CAGE 16P RA / Mini-SAS HD Next generation SAS storage interface
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Style Receptacle with Cage
Connector Type SAS, Mini HD
Number of Positions 16
Mounting Style Through Hole, Right Angle
Termination Press-Fit
Features Latch Lock
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Manufacturer Pack Quantity 90
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804883-10112632-101LF
Ultra Librarian 3D Model Ultra Librarian 10112632-101LF CAD Model

Description

The Amphenol ICC (FCI) 804883-10112632-101LF is a 16-position SAS, Mini HD connector receptacle with a cage.

  • Latch Lock: Yes
  • Mounting: Through Hole, Right Angle
  • Termination: Press-Fit
  • Contact Finish Thickness: 30.0μin (0.76μm), Gold
  • Packaging: Tray
  • Popularity: Medium
  • Manufacturer Pack Quantity: 90
  • MSL Level: 1 (Unlimited)
