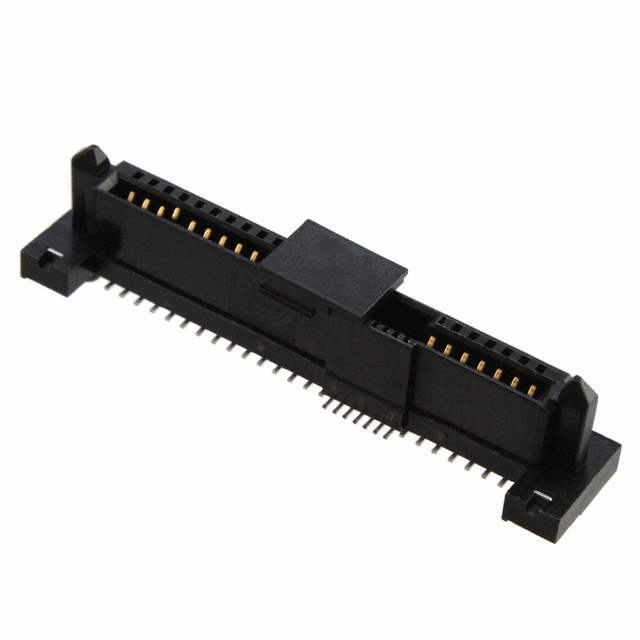

10076579-002C-TRLF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10076579-002C-TRLF

Part No 10076579-002C-TRLF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN SAS RCPT 29POS SLD SMD
Datasheet
10076579-002C-TRLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324276-10076579-002C-TRLF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Pluggable Connectors > Pluggable Connector Assemblies
Part Status Active
Connector Type SAS
Number of Positions 29
Mounting Type Surface Mount
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ultra Librarian 3D Model Ultra Librarian 10076579-002C-TRLF CAD Model

Description

FEATURES

• Connector retainers

• Staggered contact lengths

• Molded guide posts

• Vertical and Right Angle connector configurations

• High speed serial interface is designed to support differential signaling
