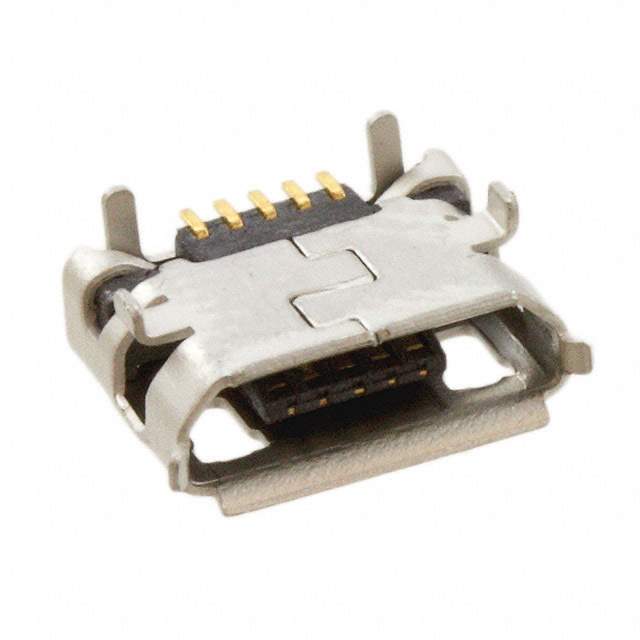

10118194-0001LF

Part No 10118194-0001LF
Manufacturer Amphenol FCI
Catalog USB, DVI, HDMI Connectors
Description CONN USB MICRO B RECPT SMT R/A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C to 80°C
Number of Ports 1
Current Rating 1.8A per Contact
Voltage Rating 100VAC
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 093363-10118194-0001LF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 10118194-0001LF CAD Model

Description

Product Overview

The 10118194-0001LF connector specializes in delivering high-performant, reliable connections tailored for demanding electronic environments. Its design ensures optimal space usage and connectivity efficiency.

Features and Benefits

  • High-Performance Connectivity: Ensures minimal connection loss.
  • Robust Design: Crafted to withstand challenging environments.
  • Flexible Usage: Suitable for a wide range of applications.

Applications

  • Aerospace Engineering
  • Robotics
  • Security Systems
  • Instrumentation

Additional Details

With its advanced specifications, this connector is poised to enhance the capabilities of any electronic system. Its versatility ensures it supports evolving technological demands across various sectors.
