Same model may have multiple batches, images only for reference.

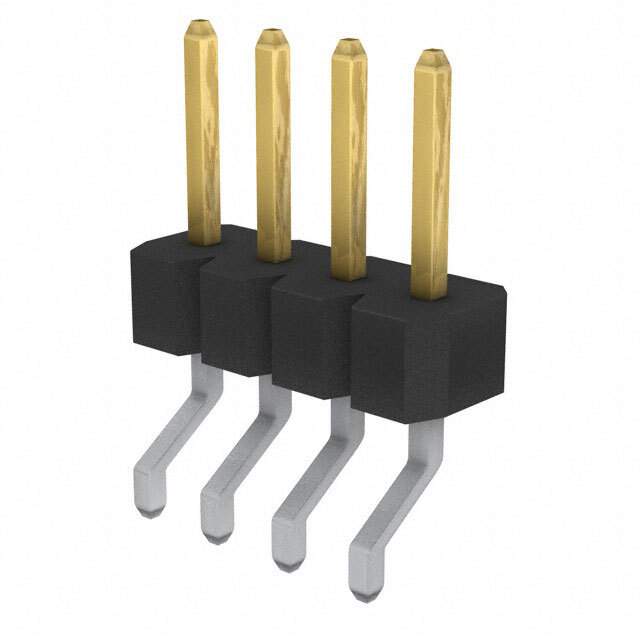

10119333-101K04LF Real Image
Same model may have multiple batches, images only for reference.

10119333-101K04LF

Part No 10119333-101K04LF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description HEADER BERGSTIK SMT
Datasheet
10119333-101K04LF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Series BERGSTIK
Packaging Reel package
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board
Shrouding Unshrouded
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.150" (3.81mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Insulation Color Black
Contact Finish Thickness - Post 78.7μin (2.00μm)
Win Source Part Number 763260-10119333-101K04LF
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin France
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 10119333-101K04LF CAD Model

Description

The Amphenol FCI 763260-10119333-101K04LF is a medium-popularity electronic component.

  • Series: BERGSTIK
  • Number of Positions: 4
  • Connector Type: Header, breakaway
  • Contact Type: Male pin
  • Positions Loaded: All
  • Number of Rows: 1
  • Termination: Solder
  • Fastening Type: Push-pull
  • Contact Material: Copper alloy
  • Mounting: Surface mount, right angle
  • Insulation Material: Thermoplastic
  • Style: Board to board
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold or gold, GXT
  • Contact Finish Thickness-Mating: 30μin (0.76μm)
  • Contact Finish-Post: Tin
  • Contact Finish Thickness-Post: 78.7μin (2.00μm)
  • Insulation Color: Black
  • Shrouding: Unshrouded
  • Overall Contact Length: -
  • Insulation Height: 0.150" (3.81mm)
  • Contact Shape: Square
  • Contact Length-Mating: 0.230" (5.84mm)
  • ECCN: EAR99
  • Country of Origin: France
  • Estimated EOL Date: 2028
  • Win Source Part Number: 763260-10119333-101K04LF
