Same model may have multiple batches, images only for reference.

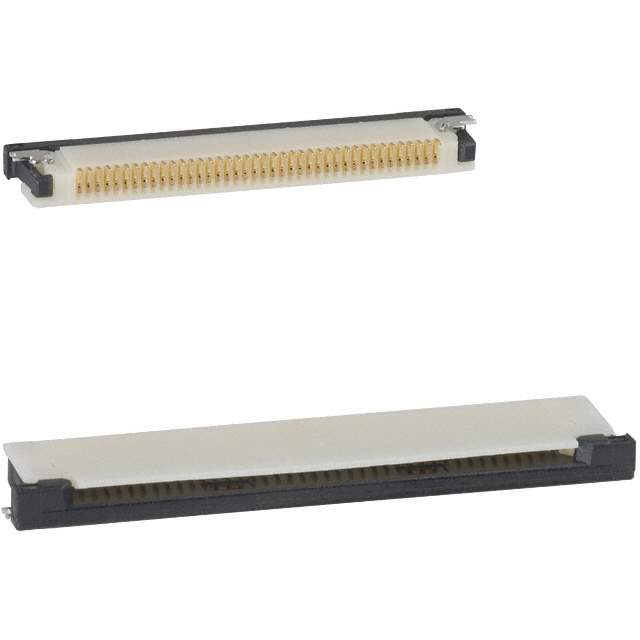

62684-402100ALF Real Image
Same model may have multiple batches, images only for reference.

62684-402100ALF

Part No 62684-402100ALF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 40POS 0.50MM R/A
Datasheet
62684-402100ALF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Series OPU
Packaging Reel package
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA9T), Nylon 9T, Glass Filled
Actuator Material Thermoplastic, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness 2μin (0.05μm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Win Source Part Number 764438-62684-402100ALF
Popularity Medium
Supply and Demand Status Limited
Family Name 62684
Introduction Date February 15, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 62684-402100ALF CAD Model

Description

The Amphenol FCI OPU with part number 764438-62684-402100ALF is a medium popularity electronic component. It is a connector with 40 positions and a pitch of 0.020" (0.50mm).

  • Positions: 40
  • Pitch: 0.020" (0.50mm)
  • Voltage: 50V
  • Current: 0.5A
