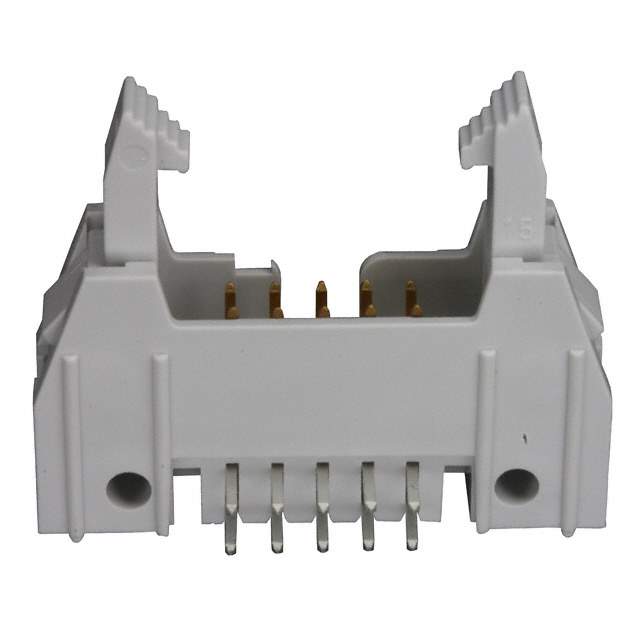

71922-110LF Real Image
Same model may have multiple batches, images only for reference.

71922-110LF

Part No 71922-110LF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN HEADER 10POS DUAL R/A PCB
Datasheet
71922-110LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.339" (8.61mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot, Mounting Flange
Material Flammability Rating UL94 V-0
Insulation Color Gray
Contact Finish Thickness - Post 78.7μin (2.00μm)
Win Source Part Number 1006969-71922-110LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 71922-110LF CAD Model

Description

The Amphenol FCI 1006969-71922-110LF is a header connector that comes in a tube/rail packaging.

  • Packaging: Tube/Rail
  • Positions: 10
  • Features: Keying Slot, Mounting Flange
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Supply and Demand: Balanced
  • Style: Board to Cable/Wire
  • Pitch Mating: 2.54mm
  • Contact Finish (Mating): Gold and GXT
  • Contact Finish (Post): Tin, 78.7μin thickness
  • Insulation Color: Gray
  • Shrouded: 4 Walls
  • Contact Length (Mating): 0.228"
  • Contact Length (Post): 0.114"
