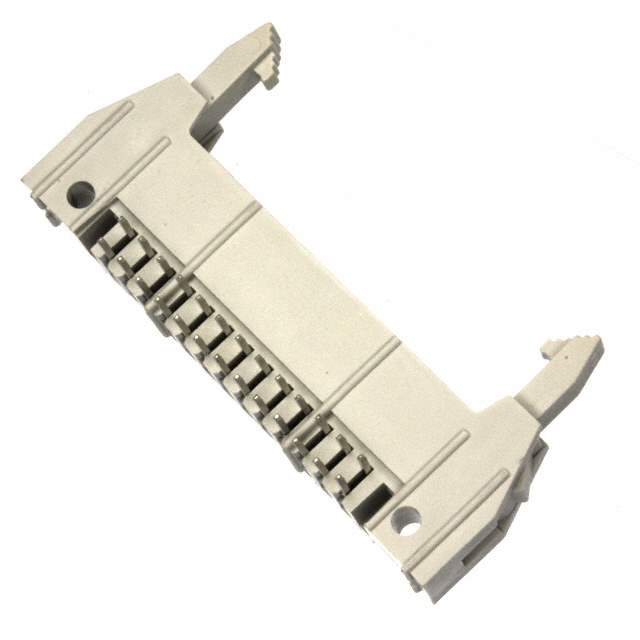

71922-126LF Real Image
Same model may have multiple batches, images only for reference.

71922-126LF

Part No 71922-126LF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN HEADER R/A 26POS 2.54MM / SHR EL HEADER RA DR TMT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.339" (8.61mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot, Mounting Flange
Material Flammability Rating UL94 V-0
Insulation Color Gray
Contact Finish Thickness - Post 78.7μin (2.00μm)
Manufacturer Pack Quantity 9
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808011-71922-126LF
Ultra Librarian 3D Model Ultra Librarian 71922-126LF CAD Model

Description

The Amphenol ICC (FCI) 808011-71922-126LF is a 26-position male pin header connector from Amphenol ICC (FCI).

  • Mounting Style: Right-Angle Through-Hole
  • Features: Keying Slot, Mounting Flange
  • Applications: Board to Cable/Wire
  • Insulation Material: Thermoplastic, Glass-Filled (UL94 V-0)
  • Pitch-Mating: 0.100" (2.54mm)
  • Loaded Positions: All
  • Number of Rows: Two
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks
  • Contact Material: Phosphor Bronze
  • Mating Contact Finish: Gold (30.0μin (0.76μm))
  • Post Contact Finish: Tin (78.7μin (2.00μm))
  • Shrouding: 4 Walls
  • Row Spacing: 0.100" (2.54mm)
  • Contact Length (Mating): 0.228" (5.80mm)
  • Contact Length (Post): 0.114" (2.90mm)
  • Manufacturer Pack Quantity: 9
  • MSL Level: 1 (Unlimited)
