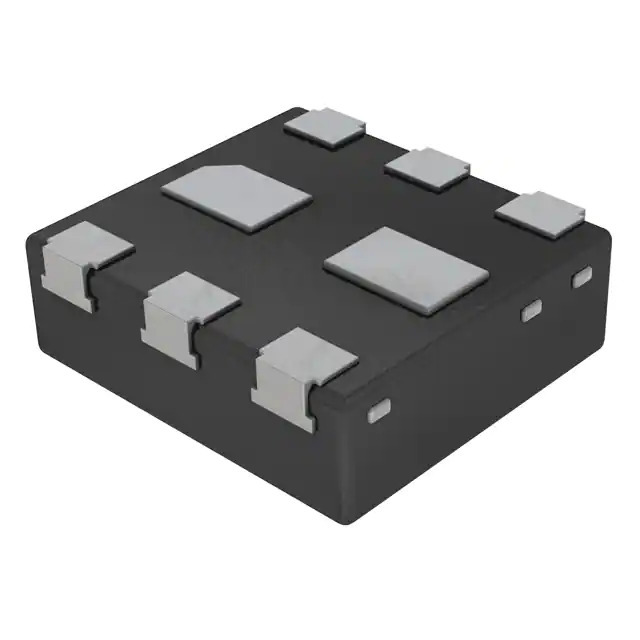

NX7002BKXBZ

Name: NX7002BKXBZ
Brand: Nexperia USA Inc.
SKU: 1376854
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NX7002BKXBZ
Manufacturer	Nexperia USA Inc.
Catalog	FETs - Arrays
Description	MOSFET 2N-CH 60V 0.26A 6DFN
Datasheet	NX7002BKXBZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr	Nexperia USA Inc.
Series	-
Package	Tape & Reel
Product Status	Active
Technology	MOSFET (Metal Oxide)
Configuration	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	260mA
Rds On (Max) @ Id, Vgs	2.8Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	23.6pF @ 10V
Power - Max	285mW
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	DFN1010B-6
Base Product Number	NX7002
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0095
Win Source Part Number	1376854-NX7002BKXBZ
Ultra Librarian 3D Model	Ultra Librarian NX7002BKXBZ CAD Model

Alternative Products

Description

The NX7002BKXBZ is a MOSFET transistor array manufactured by Nexperia USA Inc.

Series: NX7002
Vdss: 60V
Id: 260mA @ 25°C
Rds On (Max): 2.8Ohm @ 200mA and 10V
Qg: 1nC @ 10V
Gate Type: Logic level
Mounting Type: Surface mount
Operating Temperature: -55°C to 150°C
Package: 6-XFDFN Exposed Pad
Product Status: Active
Power Rating: 285mW
