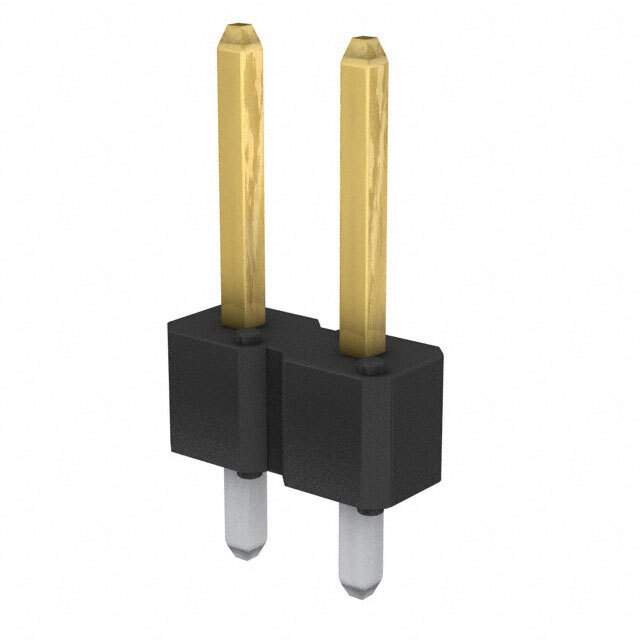

Same model may have multiple batches, images only for reference.

77311-101-02LF

Name: 77311-101-02LF
Brand: Amphenol FCI
SKU: 29391
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	77311-101-02LF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	BERGSTIK
Datasheet	77311-101-02LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol FCI
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.095" (2.41mm)
Overall Contact Length	0.425" (10.80mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	78.7μin (2.00μm)
Win Source Part Number	198296-77311-101-02LF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 77311-101-02LF CAD Model

Alternative Products

Description

The 77311-101-02LF is a premium-grade component designed to cater to modern electronic demands. Its state-of-the-art fabrication ensures unmatched performance and longevity.

Applications

Computing Devices
Communication Equipment
Smart Home Systems

Features and Benefits

Exceptional quality for lasting performance.
Efficient energy use.
Versatile and flexible for a variety of projects.

Additional Details

This component is especially suitable for use in technology-driven projects, where reliability and efficiency are paramount.
