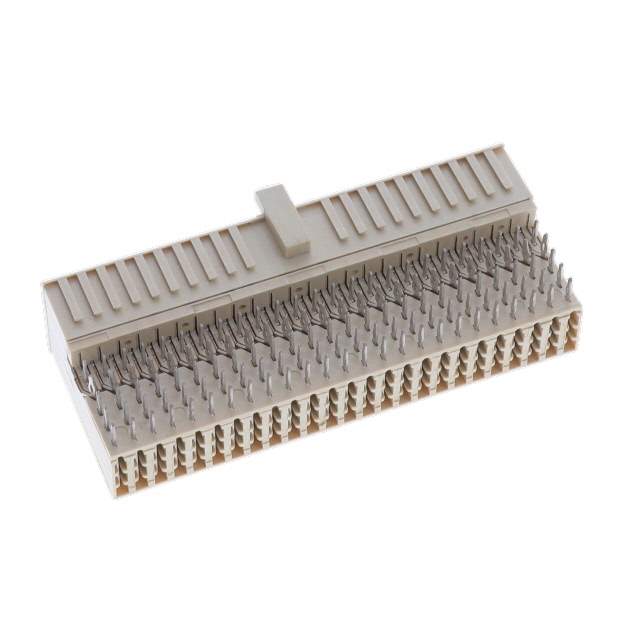

HM2R65PA5100N9LF Real Image
Same model may have multiple batches, images only for reference.

HM2R65PA5100N9LF

Part No HM2R65PA5100N9LF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description CONN RECEPT 125POS 2MM PRESS-FIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Type Receptacle, Female Sockets
Connector Style AB 25
Number of Positions 125
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Style Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Current Rating (Amps) 1.5A
Voltage Rating 500V
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Pack Quantity 36
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809268-HM2R65PA5100N9LF
Ultra Librarian 3D Model Ultra Librarian HM2R65PA5100N9LF CAD Model

Description

The Amphenol ICC (FCI) 809268-HM2R65PA5100N9LF connector is a 125 position receptacle with female sockets.

  • Number of Rows: 5
  • Pitch: 0.079" (2.00mm)
  • Mounting Type: Right Angle, Through Hole
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Voltage Rating: 500V
  • Operating Temperature: -55°C to 125°C
  • Supply and Demand Status: Limited
  • Popularity: Medium
