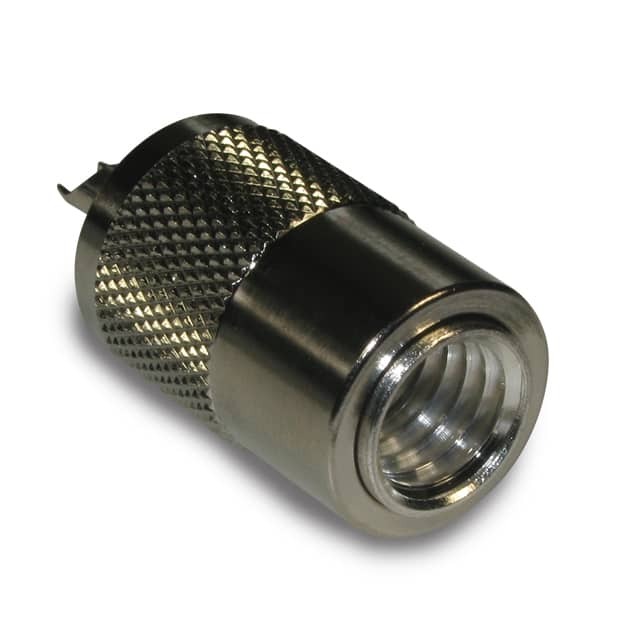

182120-10
Same model may have multiple batches, images only for reference.

182120-10

Part No 182120-10
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description UHF STRAIGHT SOLDER PLUG FOR RG-
Datasheet
182120-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bag
Product Status Active
Connector Style UHF
Connector Type Plug, Male Pin
Contact Termination Solder Cup
Shield Termination Solder
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-8, 11
Fastening Type Threaded
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Body Material Brass
Body Finish Silver
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 500
Base Product Number 182120
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 905354-182120-10
Ultra Librarian 3D Model Ultra Librarian 182120-10 CAD Model

Description

The 905354-182120-10 is a UHF Coaxial Connector Assembly designed for use in electronic systems that require RF signal transmission.

  • Connector Type: Plug Connector
  • Pin Gender: Male
  • Fastening Type: Threaded
  • Material: Brass
  • Finish: Silver
  • Center Contact Material: Brass
  • Center Contact Finish: Gold Plated
  • Impedance: 50Ohm
  • Cable Compatibility: RG-8 and 11 Cables
  • Standard Package: 1 Piece
  • Packaging: Bag
