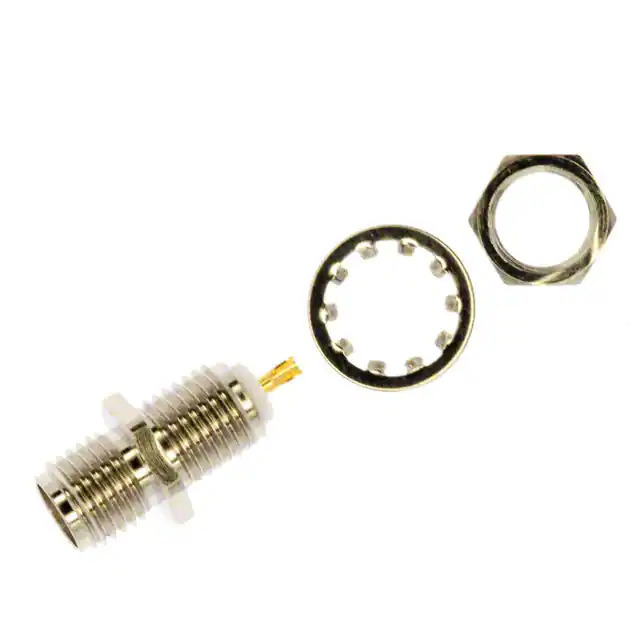

Same model may have multiple batches, images only for reference.
901-9889-RFX Amphenol-RF Division
Same model may have multiple batches, images only for reference.

901-9889-RFX

Part No 901-9889-RFX
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA RCPT STR 50 OHM SOLDER / SMA Connector Receptacle, Female Socket 50Ohm Panel Mount Solder Cup
Datasheet
901-9889-RFX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Series -
Package Bulk
Product Status Active
Connector Style SMA
Connector Type Receptacle, Female Socket
Contact Termination Solder Cup
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Cable Group -
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Features -
Housing Color Silver
Ingress Protection -
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Insertion Loss -
Base Product Number 901-98
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365240-901-9889-RFX
Ultra Librarian 3D Model Ultra Librarian 901-9889-RFX CAD Model

Description

The Amphenol RF 901-98 series is a panel mount coaxial connector assembly with a receptacle, female socket contact type.

  • Mounting Type: Panel Mount
  • Contact Type: Receptacle, Female Socket
  • Fastening Type: Threaded
  • Mounting Feature: Bulkhead - Rear Side Nut
  • Color: Silver
  • Included Parts: 3 Pieces - 1 Connector, 1 Lockwasher, 1 Nut
  • Impedance: 50Ohm
  • Frequency Range: Up to 18 GHz
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Connector Type: SMA
  • Termination: Solder Cup
  • Mating Cycles: 500
