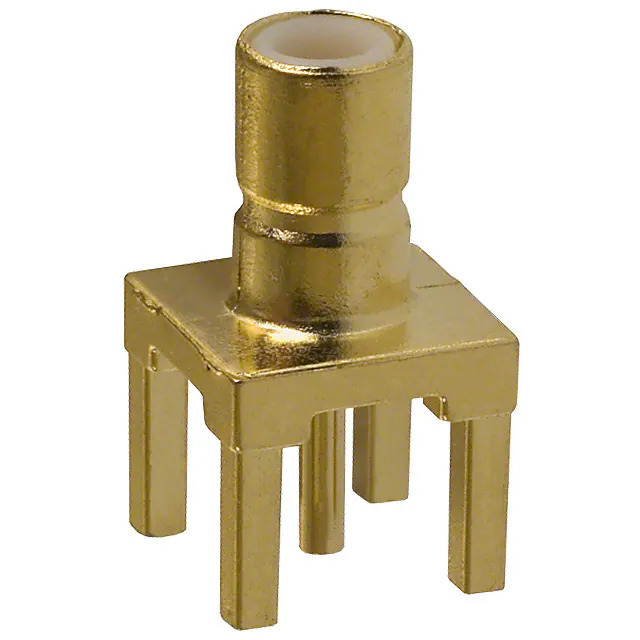

903-499J-51P2 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

903-499J-51P2

Part No 903-499J-51P2
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMB JACK STR 50 OHM PCB / SMB Connector Jack, Male Pin 50Ohm Through Hole Solder
Datasheet
903-499J-51P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Series -
Package Bulk
Product Status Active
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Mounting Feature -
Cable Group -
Fastening Type Snap-On
Frequency - Max 4 GHz
Number of Ports 1
Features -
Housing Color Gold
Ingress Protection -
Center Contact Material Brass
Includes -
Body Material Zinc Die Cast
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Insertion Loss 0.3dB
Base Product Number 903-499J
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365243-903-499J-51P2
Ultra Librarian 3D Model Ultra Librarian 903-499J-51P2 CAD Model

Description

The Amphenol RF 903-499J is a coaxial connector assembly designed for RF applications.

  • Connector Style: SMB
  • Port Configuration: Single Port, Male Pin
  • Mounting Type: Through Hole
  • Impedance: 50 Ohm
  • Frequency: Up to 4 GHz
  • Body Material: Zinc Die-Cast
  • Center Contact Material: Brass
  • Finish: Gold
  • Temperature Range: -65°C to 165°C
