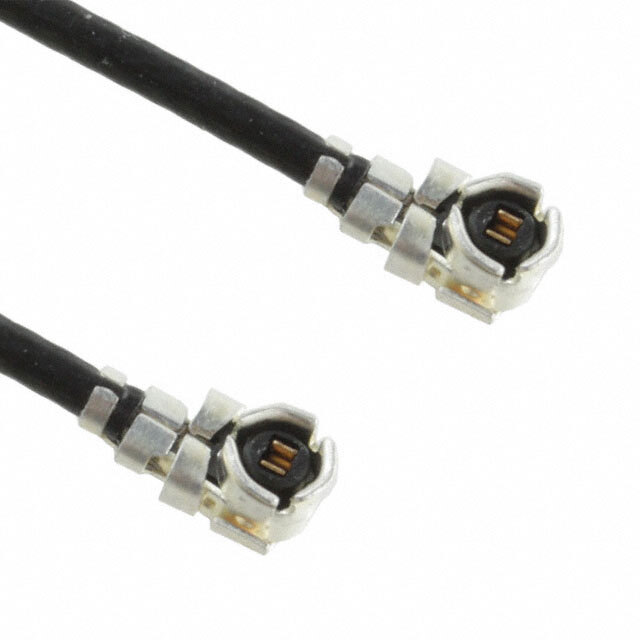

A-1PA-113-060B2 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

A-1PA-113-060B2

Part No A-1PA-113-060B2
Manufacturer Amphenol-RF Division
Catalog Coaxial Cables (RF)
Description CONN JUMPER AMC PLUG-PLUG 60MM / AMC Right Angle Plug to AMC Right Angle Plug on 1.13 mm Micro-cable 60 mm
Datasheet
A-1PA-113-060B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Series AMC
Gender Female to Female
Style UMCC to UMCC
1st Connector Ultra Miniature Coaxial Plug, Female Socket, Right Angle
2nd Connector Ultra Miniature Coaxial Plug, Female Socket, Right Angle
Length 2.362" (60.00mm)
Cable Type 1.13mm OD Coaxial Cable
Impedance 50 Ohm
Frequency - Max 6GHz
Color Black
Features Shielded
Operating Temperature Range -40°C ~ 90°C
Win Source Part Number 793144-A-1PA-113-060B2
Popularity Medium
Supply and Demand Status Balance
Family Name A-1PA-113-060B2
Introduction Date November 24, 2014
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian A-1PA-113-060B2 CAD Model

Description

The Amphenol RF Division 793144-A-1PA-113-060B2 is a shielded female to female UMCC to UMCC cable assembly.

  • Length: 2.362 inches (60.00mm)
  • Cable Type: 1.13mm OD coaxial cable
  • Operating Temperature Range: -40°C to 90°C
  • Impedance: 50 Ohm
  • First Connector: Ultra miniature coaxial plug, female socket, right angle
  • Second Connector: Ultra miniature coaxial plug, female socket, right angle
  • Series: AMC
  • Introduction Date: November 24, 2014
  • Popularity: Medium
  • EOL Date: 2026
