Same model may have multiple batches, images only for reference.

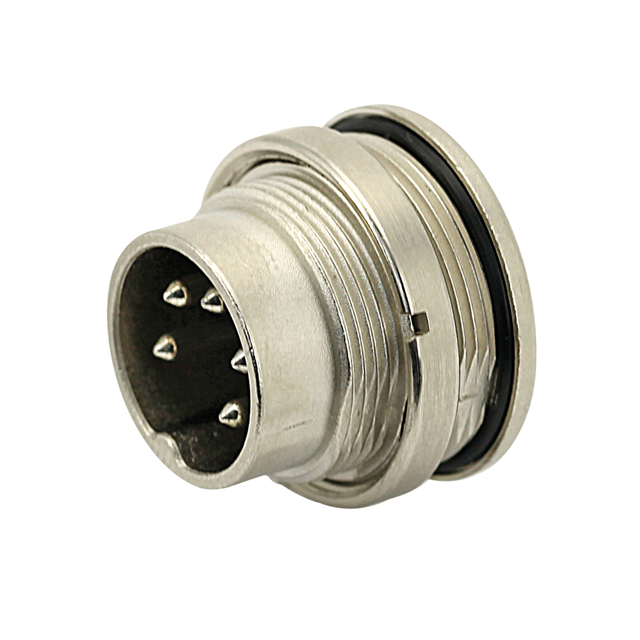

C091 11C012 000 2 Real Image
Same model may have multiple batches, images only for reference.

C091 11C012 000 2

Part No C091 11C012 000 2
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description REAR MOUNTING MALE METAL RECEPTA / 12 Position Circular Connector Receptacle Housing Panel Mount
Datasheet
C091 11C012 000 2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Amphenol Sine Systems Corp
Series C091
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 12
Shell Size - Insert M16-12
Contact Type Crimp
Contact Size 1.0mm
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Threaded
Orientation Keyed
Shell Material Zinc Die Cast
Shell Finish Nickel
Housing Color Silver
Ingress Protection IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Shielding Shielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -40°C ~ 100°C
Base Product Number C091 11C012
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Other Names 889-C09111C0120002
Standard Package 100
Win Source Part Number 1034475-C091 11C012 000 2
Ultra Librarian 3D Model Ultra Librarian C091 11C012 000 2 CAD Model

Description

The Amphenol C091 series receptacle housing is designed for male pins and has 12 positions.

  • Positions: 12
  • Contact Type: crimp
  • Fastening Type: threaded
  • Connector Type: receptacle housing
  • Contact Size: 1.0mm
  • Housing Color: silver
  • Housing Material: thermoplastic
  • Shell Material: zinc die-cast
  • Shell Finish: nickel
  • Flammability Rating: UL94 V-0
  • Orientation: keyed
  • Mounting Type: panel mount
  • Connector Rating: IP65/IP67
  • Availability: bulk
  • Standard Package: 100
