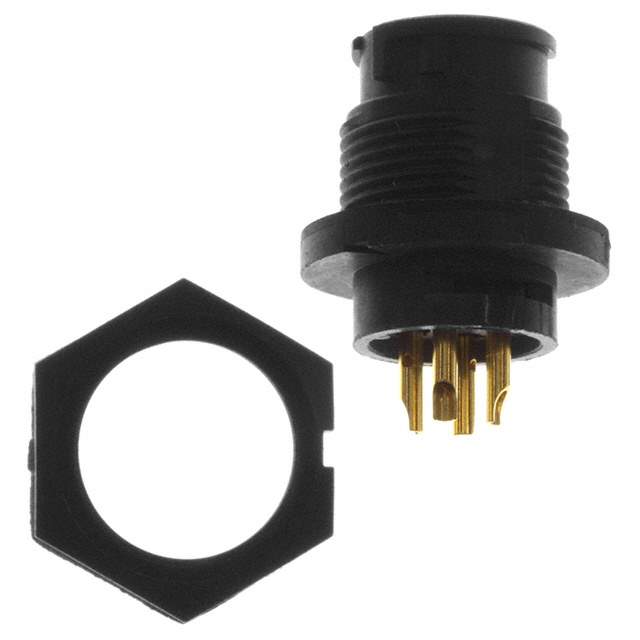

EN3P4FX Real Image
Same model may have multiple batches, images only for reference.

EN3P4FX

Part No EN3P4FX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Description CONN RCPT FMALE 4P GOLD SLDR CUP / 4 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series EN3®
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 4
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Contact Finish - Mating Gold
Color Black
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 7.5A
Voltage Rating 250VAC/DC
Temperature Range - Operating -40°C ~ 65°C
Contact Material Copper Alloy
Insert Material Elastomer
Applications General Purpose, Instrumentation, Marine, Medical
Base Product Number EN3P4F
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Names SC262
Standard Package 100
Win Source Part Number 1201822-EN3P4FX
Ultra Librarian 3D Model Ultra Librarian EN3P4FX CAD Model

Description

The EN3® series connector is a circular connector that comes with a receptacle, female sockets connector type.

  • Manufacturer: Amphenol Sine Systems
  • Product Name: EN3® Series
  • Connector Type: Receptacle, Female Sockets
  • Positions: 4
  • Fastening Type: Bayonet Lock
  • Contact Material: Copper Alloy
  • Termination: Solder
  • Voltage Rating: 250VAC/DC
  • Ingress Protection: IP66/IP68
  • Shell Material: Thermoplastic
  • Insert Material: Elastomer
  • Application: General-Purpose, Instrumentation, Marine, Medical
  • Keying: Yes
  • Mounting Feature: Bulkhead - Front Side Nut
  • Contact Finish (Mating): Gold
  • Temperature Range: -40°C to 65°C
  • Packaging: Bulk
  • Standard Package: 100
