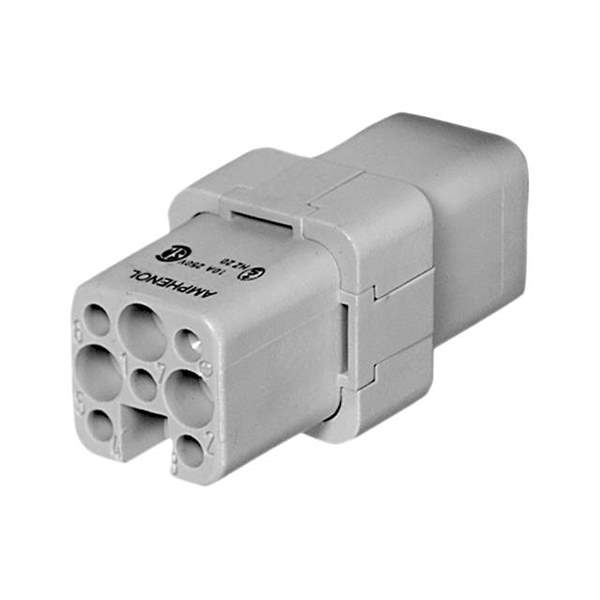

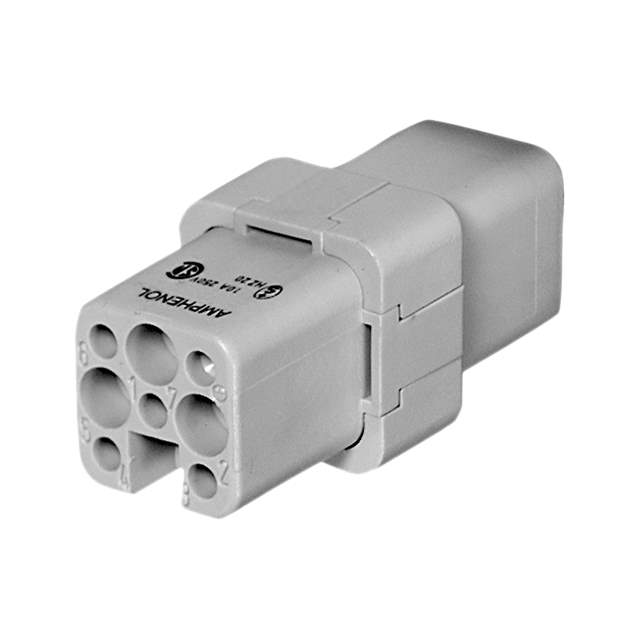

C146 10B007 000 2 Real Image
Same model may have multiple batches, images only for reference.

C146 10B007 000 2

Part No C146 10B007 000 2
Manufacturer Amphenol Sine Systems Corp
Catalog OEM Parts (C - E)
Description connector comp, c146d insert, contacts not included, for 7+gnd stamped socket cont
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, UL
Color Grey
Connector Type Receptacle
Contact Gender Female
Contact Material Bronze
Contact Plating PBT, Polybutylene, Polyester, Silver
Current Rating 15 A
Depth 33.5 mm
Flammability Rating UL94 V-0
Gender Female
Housing Material PBT
Length 20.8 mm
Max Current Rating 16 A
Maximum Operating Temperature 3 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature -40 °C
Mount Panel
Number of Contacts 8
Number of Pins 8
Number of Poles 7
Number of Positions 8
Number of Rows 3
Orientation Straight
Radiation Hardening No
Ratings IP20
REACH SVHC No SVHC
RoHS Compliant
Termination Crimp
Voltage Rating 600 V
Voltage Rating (DC) 250 V
Wire/Cable Diameter 4.1 mm
Win Source Part Number 986097-C146 10B007 000 2
Categories OEM Parts(C-E)
Manufacturer Amphenol Sine Systems Corp
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian C146 10B007 000 2 CAD Model

Description

The Amphenol Sine Systems Corp 986097-C146 10B007 000 2 is a female connector designed for crimp termination.

  • Contacts: 8
  • Color: gray
  • Voltage rating: 600 V
  • Current rating: 15 A
  • Contact material: bronze
  • Housing material: PBT
  • Approvals: CSA and UL
  • Orientation: straight
  • IP rating: IP20
  • Poles: 7
  • Rows: 3
  • Standard package: one piece
  • ROHS compliant: Yes
