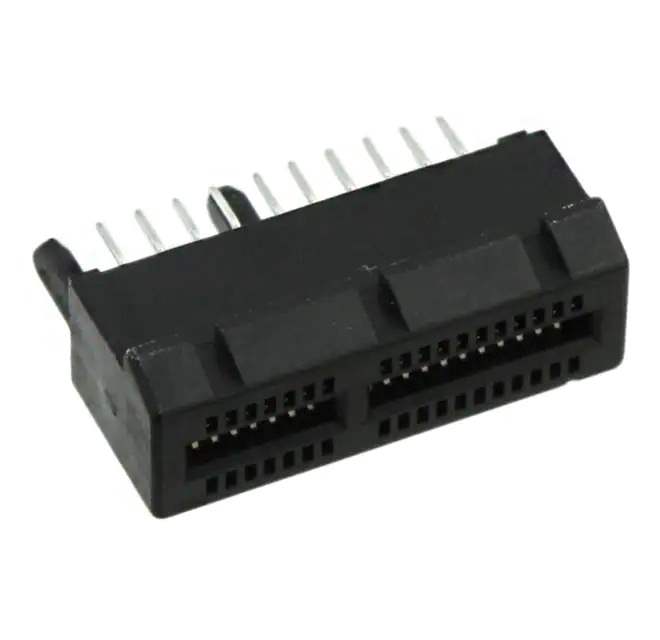

10018784-10200TLF

Part No 10018784-10200TLF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 36POS 0.039 / 36 Position Female Connector PCI Express? Gold 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Amphenol
Series HPCE®
Package Tray
Product Status Active
Card Type PCI Express™
Gender Female
Number of Positions 36
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Type Through Hole
Termination Solder, Staggered
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyamide (PA), Nylon, Glass Filled
Base Product Number 10018784
Standard Package 70 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849854-10018784-10200TLF
Ultra Librarian 3D Model Ultra Librarian 10018784-10200TLF CAD Model

Description

The HPCE series card edge connector is a reliable and high-performance component for various electronic devices. Bolded product name: HPCE series. Manufacturer is not explicitly mentioned in the description.

  • Total Positions: 36
  • Pitch: 0.039" (1.00mm)
  • Card Type: PCI Express™
  • Contact Type: Cantilever
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA) and Nylon (Glass Filled)
  • Mounting Type: Through Hole
  • Temperature Range: -55°C to 85°C
  • Package: Tray
  • Standard Package Quantity: 70 pcs
