Same model may have multiple batches, images only for reference.

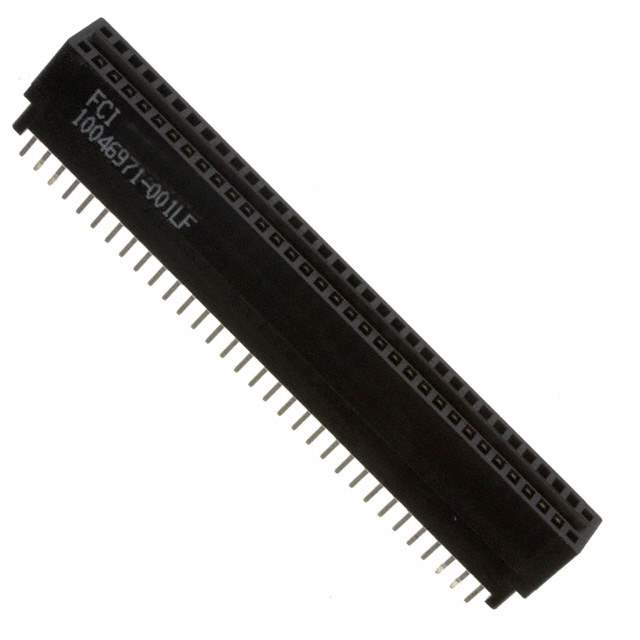

10046971-001LF Real Image
Same model may have multiple batches, images only for reference.

10046971-001LF

Part No 10046971-001LF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FML 64POS 0.100 / 64 (Power) Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Amphenol ICC (FCI)
Series Power Edge
Package Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 32
Number of Positions 64 (Power)
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole
Termination Kinked Pin, Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -5°C ~ 105°C
Material - Insulation Thermoplastic
Base Product Number 10046971
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-2863,10046971001LF,10046971-001LF-ND
Standard Package 42
Win Source Part Number 1030197-10046971-001LF
Ultra Librarian 3D Model Ultra Librarian 10046971-001LF CAD Model

Description

The Power Edge series connector is designed for card edge connections and has a 64-position power configuration with a pitch of 2.54mm.

  • Series: Power Edge
  • Configuration: 64-position power configuration
  • Pitch: 2.54mm
  • Model: 1030197-10046971-001LF
  • Color: black
  • Contact Type: cantilever
  • Features: kinked pin and solder termination
  • Contact Finish: gold contact finish
  • Thickness: 30.0µin (0.76µm)
  • Package: trays
  • Contact Material: copper alloy
  • Insulation Material: thermoplastic
  • Gender: female
  • Standard Package: 42
  • REACH: REACH affected
  • HTSUS Code: 8536.69.4040
  • Alternative Parts: 1761469-1, 1761468-1, 5532600-5, 10053363-200LF, 5530843-8, 5530843-510046971-001LF, and 10046971-001LF
