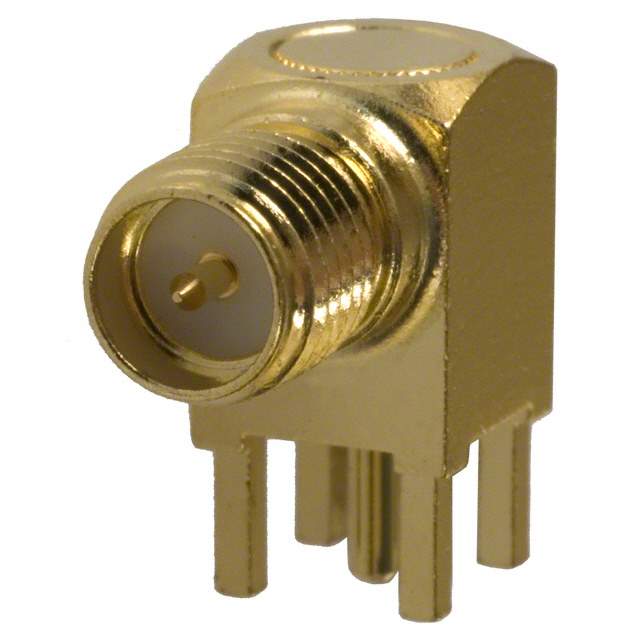

132136RP Real Image
Same model may have multiple batches, images only for reference.

132136RP

Part No 132136RP
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN RP-SMA RCPT R/A 50 OHM PCB / RP-SMA Connector Receptacle, Male Pin 50Ohm Through Hole, Right Angle Solder
Datasheet
132136RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol RF
Package Bulk
Connector Style RP-SMA
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Threaded
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 375 V
Mating Cycles 500
Base Product Number 132136
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names RSMA6252A2-3GT50G-50,ACX1233
Standard Package 1
Win Source Part Number 1182126-132136RP
Ultra Librarian 3D Model Ultra Librarian 132136RP CAD Model

Description

The Amphenol 132136RP is an RP-SMA coaxial connector with a receptacle and male pin connector type.

  • Manufacturer: Amphenol
  • Connector Type: RP-SMA Coaxial
  • Connector Style: Receptacle, Male Pin
  • Fastening Type: Threaded
  • Housing Color: Gold
  • Body Material: Brass
  • Body Finish: Gold
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Impedance: 50Ohm
  • Voltage Rating: 375V
  • Mounting Type: Through-Hole, Right Angle
