Part No 17EHD-026-P-AA-0-00
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies

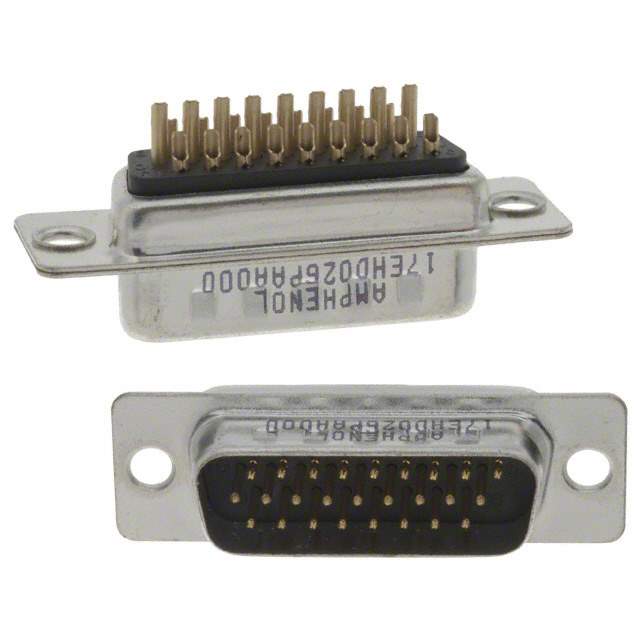

Description CONN D-SUB HD PLUG 26P SLDR CUP / 26 Position D-Sub, High Density Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (Commercial Products)
Packaging Tray
Connector Style D-Sub, High Density
Connector Type Plug, Male Pins
Number of Positions 26
Number of Rows 3
Mounting Free Hanging (In-Line)
Shell Size, Connector Layout 2 (DA, A) High Density
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Grounding Indents
Voltage Rating 125V
Color Black
Contact Form Stamped
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 17EHD026
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 17EHD026PAA000
Standard Package 50
Win Source Part Number 1333226-17EHD-026-P-AA-0-00
Ultra Librarian 3D Model Ultra Librarian 17EHD-026-P-AA-0-00 CAD Model

Description

The Amphenol ICC (Commercial Products) 1333226-17EHD-026-P-AA-0-00 is a D-sub connector assembly with 26 positions in a 3-row configuration.

  • Connector Type: Plug with male pins
  • Grounding Indents: Yes
  • Termination Method: Solder Cup
  • Contact Finish: Gold with flash
  • Contact Material: Copper Alloy
  • Shell Material: Steel with a nickel-plated finish
  • Voltage Rating: 125V
  • Current Rating: 3A
  • Temperature Range: -55℃ to 105℃
  • RoHS Compliant: Yes
