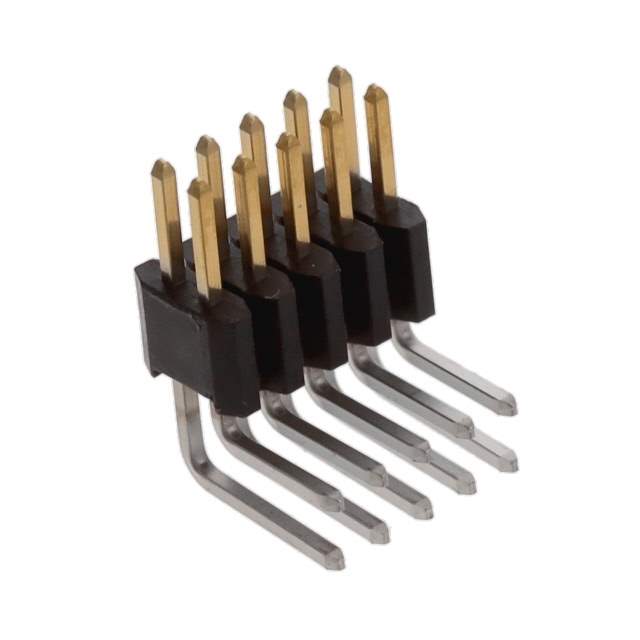

Same model may have multiple batches, images only for reference.

20021112-00010T1LF

Name: 20021112-00010T1LF
Brand: Amphenol
SKU: 1380648
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	20021112-00010T1LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 1.27MM / Connector Header Through Hole, Right Angle 10 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Amphenol
Series	Minitek127® 1.27mm
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	0.106" (2.69mm)
Overall Contact Length	-
Insulation Height	0.135" (3.43mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	-
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	125VAC
Mated Stacking Heights	-
Contact Finish Thickness - Post	50.0µin (1.27µm)
Applications	-
Base Product Number	20021112
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	93 pcs
Win Source Part Number	1380648-20021112-00010T1LF
Ultra Librarian 3D Model	Ultra Librarian 20021112-00010T1LF CAD Model

Alternative Products

Description

The Amphenol Minitek127® 1.27mm header connector is a versatile and high-quality connector designed for various applications.

Positions: 10
Pitch: 0.050" (1.27mm)
Contact Type: Male Pin
Termination: Solder
Contact Finish: Gold
Insulation Material: Thermoplastic
Manufacturer: Amphenol
