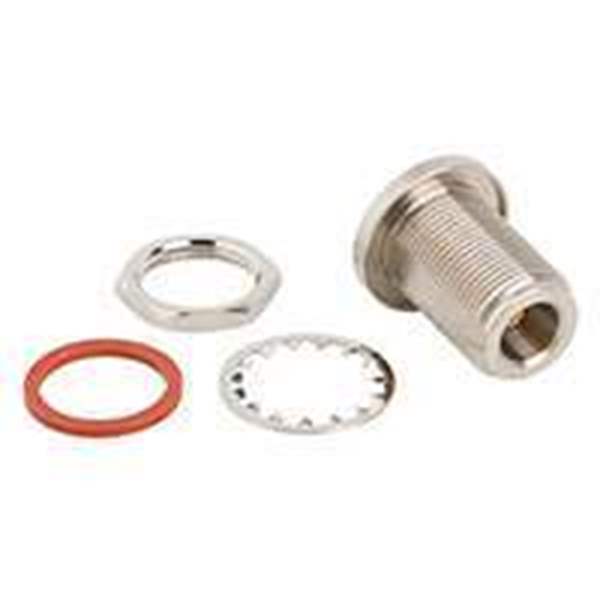

242125-10 Amphenol RF
Same model may have multiple batches, images only for reference.

242125-10

Part No 242125-10
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Adapters
Description COAX ADAPT SMA TO N
Datasheet
242125-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol RF
Packaging  Bulk
Part Status Active
Adapter Type Jack to Jack
Conversion Type Between Series
Center Gender Female to Female
Convert From (Adapter End) N Jack, Female Socket
Convert To (Adapter End) SMA Jack, Female Socket
Mounting Type Panel Mount
Mounting Feature Bulkhead
Fastening Type Threaded, Threaded
Ultra Librarian 3D Model Ultra Librarian 242125-10 CAD Model

Description

Adapter Coaxial Connector N Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
