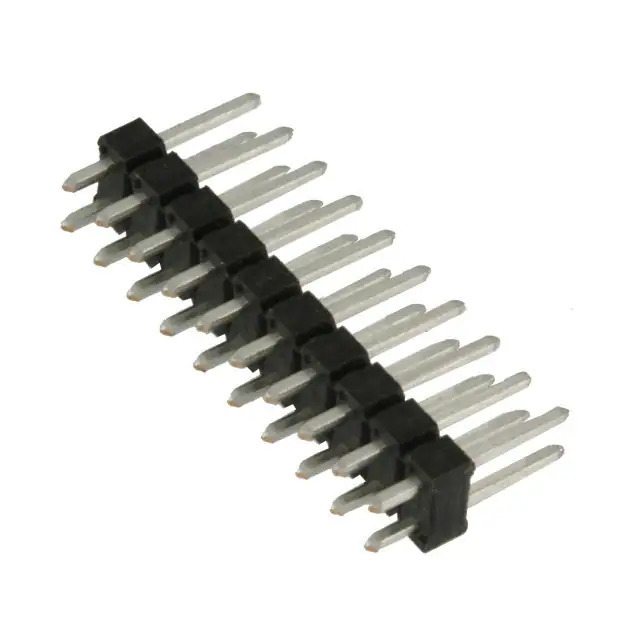

The Amphenol ICC (FCI) BERGSTIK™ II 67996 series is a board-to-board header connector with a 0.100" (2.54mm) pitch.

• Series: BERGSTIK™ II 67996
• Pitch: 0.100" (2.54mm)
• Mounting Type: Through-Hole
• Positions: 20
• Rows: 2
• Contact Gender: Male Pin
• Current Rating: 3A per Contact
• Contact Finish: Tin
• Contact Material: Phosphor Bronze
• Shrouded: Unshrouded
• Fastening Type: Push-Pull
• Mating Contact Length: 0.230" (5.84mm)
• Post Contact Length: 0.095" (2.41mm)
• Overall Contact Length: 0.425" (10.80mm)
• Insulation Height: 0.100" (2.54mm)
• Contact Shape: Square
• Flammability Rating: UL94 V-0
• Insulation Color: Black
