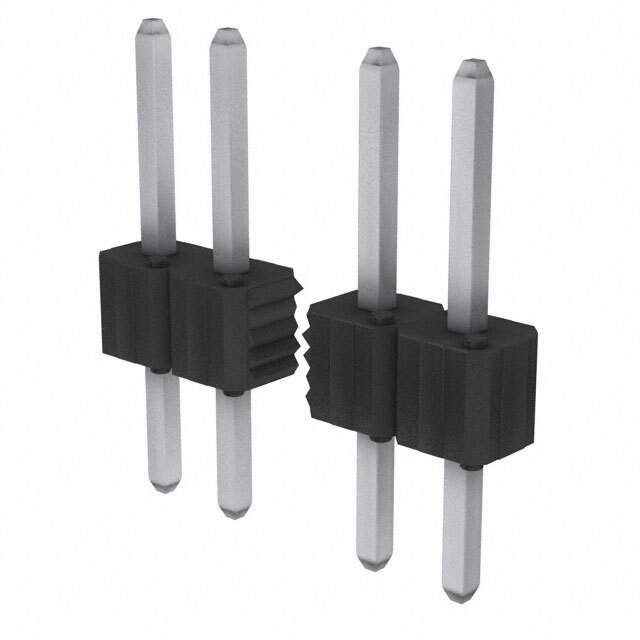

Same model may have multiple batches, images only for reference.

68002-406HLF

Name: 68002-406HLF
Brand: Amphenol
SKU: 1217167
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	68002-406HLF
Manufacturer	Amphenol
Catalog	Circular Connectors - Housings
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.150" (3.81mm)
Overall Contact Length	0.480" (12.19mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Temperature Range - Operating	-65°C ~ 130°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	68002
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-3306,68002406HLF
Standard Package	100
Win Source Part Number	1217167-68002-406HLF
Ultra Librarian 3D Model	Ultra Librarian 68002-406HLF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 1217167-68002-406HLF is a 6-position male pin header connector.

Series: BERGSTIK® II
Style: Board-to-board
Pitch: 0.100" (2.54mm)
Positions: 6
Gender: Male
Contact Material: Phosphor bronze
Contact Finish: Tin
Mounting Type: Through-hole
Fastening Type: Push-Pull
Material Flammability Rating: UL94 V-0
Temperature Range: -65°C to 130°C
Mating Contact Length: 0.230" (5.84mm)
Post Contact Length: 0.150" (3.81mm)
Overall Contact Length: 0.480" (12.19mm)
Package: Bag
Standard Package: 100
